MEGAMESH-PRO X1
HyMesh®Model: OWX-E6-2E35-25-5G · 2.4 / 5 GHz
TECH SPECS
Overview
| Product name | MEGAMESH-PRO X1 |
|---|---|
| Model | OWX-E6-2E35-25-5G |
| Product family | HyMesh® |
| Product type | Rugged industrial outdoor 5G / WiMesh / WiFi 6 router |
| Connectivity technologies | 5G / LTE / WCDMA · WiMesh® · WiFi 6 · Ethernet |
| Concurrent radio operation | WiMesh link and local WiFi 6 access point operate simultaneously on the same radio interface |
| WiFi / WiMesh bands | Dual-band 2.4 GHz and 5 GHz |
| Outdoor protection | IP67 |
| Compatible WiFi / WiMesh antenna | O3B-6P-R |
WiFi / WiMesh
| Wireless technology | WiMesh® / WiFi 6 · IEEE 802.11ax |
|---|---|
| Frequency bands | 2.4 GHz and 5 GHz |
| Spatial diversity | 2×2 MIMO |
| Concurrent operating mode | WiFi 6 access point + WiMesh on the same radio interface |
| WiMesh role | Link to other WiMesh-equipped nodes while serving local WiFi users |
| Radio resource sharing | AP and mesh traffic share the configured radio interface and its airtime |
| RF connectors | 2× TNC for 2.4 / 5 GHz WiFi antennas |
| Compatible antenna | O3B-6P-R; suitable RF leads and connector configuration required |
Cellular
| Cellular technologies | 5G NR · LTE-A Cat 20 · WCDMA |
|---|---|
| 5G operating modes | SA and NSA |
| 5G NR bands | n1 / n2 / n3 / n5 / n7 / n8 / n12 / n20 / n28 / n38 / n40 / n41 / n48 / n66 / n71 / n77 / n78 / n79 |
| LTE-FDD bands | B1 / B2 / B3 / B4 / B5 / B7 / B8 / B9 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B29 / B30 / B32 / B66 / B71 |
| LTE-TDD bands | B34 / B38 / B39 / B40 / B41 / B42 / B43 / B46 / B48 |
| WCDMA bands | B1 / B2 / B3 / B4 / B5 / B6 / B8 / B19 |
| Cellular MIMO | Downlink 4×4 · Uplink 2×2 |
| Cellular Tx / Rx | 2Tx / 4Rx |
| EN-DC | Supported |
| SIM slots | 2× nano-SIM (4FF) · Dual SIM, single standby |
| eSIM | Dual eSIM support listed in the supplied hardware datasheet; provisioning configuration to be confirmed |
| Cellular / GNSS RF connectors | 2× TNC for NR / LTE 2× TNC for NR / LTE / GNSS |
| GNSS | GPS / GLONASS / BeiDou / Galileo |
Hardware
| Ethernet interfaces | 1× 2.5 GbE WAN/LAN + 1× 1 GbE LAN |
|---|---|
| Industrial connector type | M12 |
| Power connector | 1× M12 |
| Serial / digital I/O | 1× M12 for RS232 + 2× DI + 2× DO |
| RS485 | 1× M12 |
| Status LEDs | Power · Network status · RSSI |
| Button | Reboot / restore |
| Platform | Qualcomm IPQ6028 |
| Power supply | 24 V DC |
| Power consumption | < 20 W |
| Dimensions | 290 × 189 × 56 mm |
| Weight | < 2.5 kg |
Network
| APNs | 4: 2 for data, 1 for voice, 1 for management |
|---|---|
| Packet data networks | Multiple PDN · Up to 16 |
| IP support | IPv4 / IPv6 dual stack |
| SIM administration | USIM PIN management, card authentication and activation |
| VLAN | IEEE 802.1Q |
| DHCP | IPv4 / IPv6 server and client |
| DNS | DNS and DNS proxy |
| Network services | DMZ · UPnP · ALG |
| Multicast | Multicast and multicast proxy |
| Address resolution | ARP |
| Position broadcast | GPS broadcast to LAN |
| Operating modes | Router · Bridge / bypass · NAT |
| Routing | Static routing · IPv4 / IPv6 |
| Port services | Port forwarding · Port mirroring |
| VPN protocols | IPsec · PPTP · GRE · L2TP v2 / v3 |
| VPN pass-through | Supported |
| Firewall | Supported |
| Filtering | MAC address · IP address · URL |
| Access control | Hierarchical user management and access permissions |
| Secure remote login | HTTPS login from WAN |
| Attack protection | DDoS protection |
Management
| Management interfaces | WebGUI / CLI · TR-069 · SNMP |
|---|---|
| Firmware integrity | Image checksum |
| Firmware recovery | Active and backup versions; rollback if an upgrade fails |
| Automated upgrade | HTTP / FTP |
| TR-069 configuration | ACS file transfer, configuration download, parameter configuration and queries |
| TR-069 operations | Remote upgrade, remote debugging and periodic monitoring |
| Configuration backup | Encrypted settings backup and restoration |
| Diagnostics | Diagnosis results and operation-log export |
| Link statistics | LAN status, transmitted / received traffic and uptime |
Environment
| Protection rating | IP67 · EN 60529 |
|---|---|
| Operating temperature | -40 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Operating humidity | 5% to 95%, non-condensing |
| Storage humidity | 5% to 95%, non-condensing |
| Salt mist | IEC 68-2-11 |
| Shock | IEC 60068-2-27 / EN 50155 / EN 61373 |
| Vibration | IEC 60068-2-6 / EN 50155 / EN 61373 |
| Packaged free-fall test | IEC 60068-2-32 · 1 m with package |
Ordering
| Product name | MEGAMESH-PRO X1 |
|---|---|
| Model | OWX-E6-2E35-25-5G |
| Package contents | Available on request |
1. Hardware values follow the supplied SP_SW_CPX80I_V1.0.pdf. The manufacturer website describes a newer hardware revision with different power, dimensions, modem and port details; these revisions are not combined. Product appearance and connector arrangement may vary by revision.
2. Concurrent WiFi 6 AP and WiMesh operation on the same radio interface, dual-band 2.4 / 5 GHz operation and O3B-6P-R compatibility are confirmed for this LUCEOR configuration. Mesh and AP traffic share radio airtime; no independent full-rate throughput is implied.
3. Cellular service depends on supported bands, operator service and configuration. Dual SIM single standby does not mean two simultaneous cellular connections. Confirm the eSIM provisioning configuration.
4. Ethernet ratings are interface speeds, not guaranteed internet throughput. Environmental references are listed in the supplied hardware datasheet; supporting qualification documentation is available on request.
5. Use suitable RF leads and connector matching for O3B-6P-R on the WLAN ports. Cellular / GNSS ports require antennas suited to those services. Package contents available on request.
PACKAGE CONTENTS
In the Box
Package contents available on request.
MEGAMESH-PRO X1 / HYMESH®
Configure your industrial network.
Confirm the antenna configuration, RF leads, M12 cables, power supply and cellular service for your installation.
PRODUCT PHOTOGRAPHY
MEGAMESH-PRO X1, from every angle.

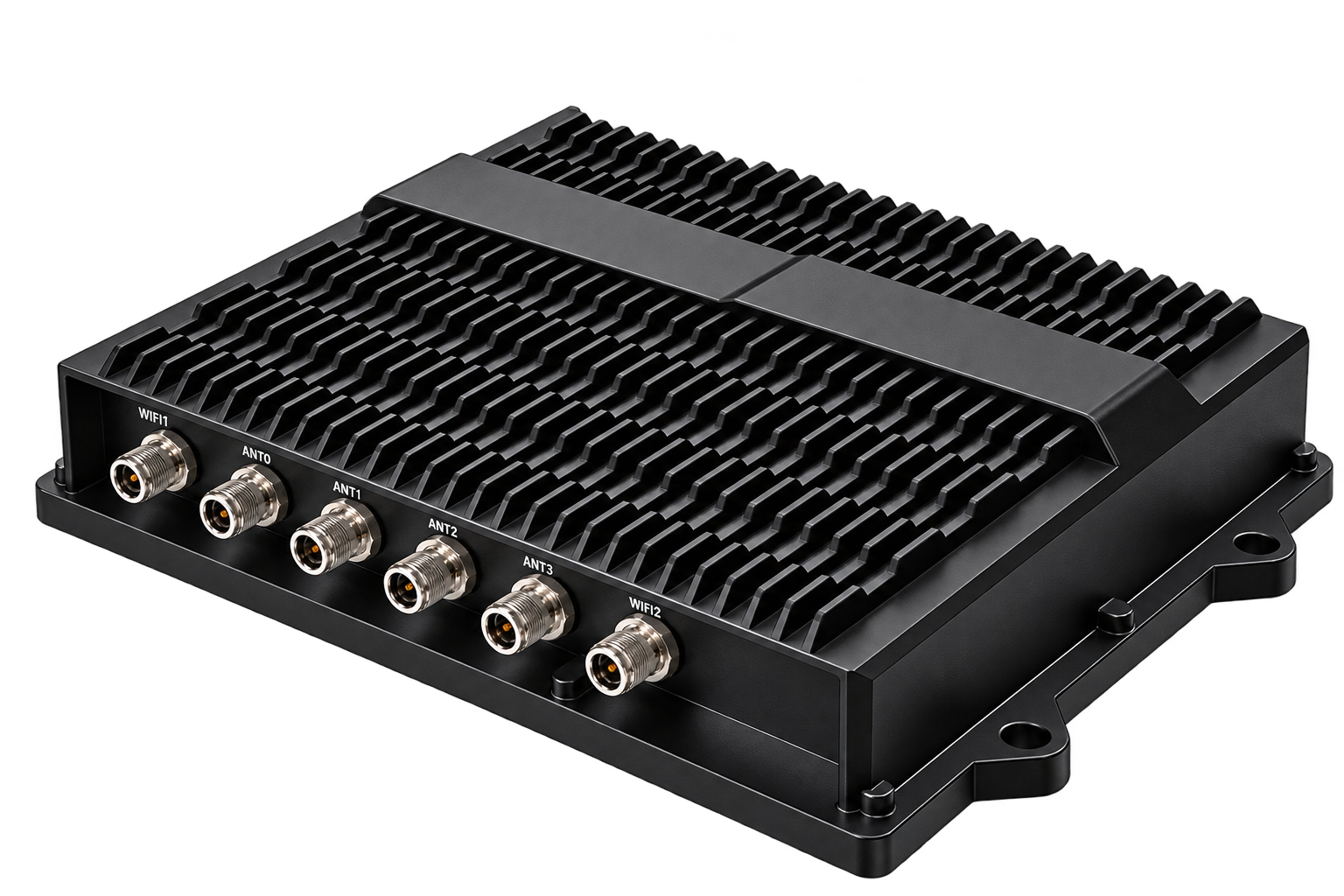

Three-quarter, RF connector, industrial interface and enclosure views.

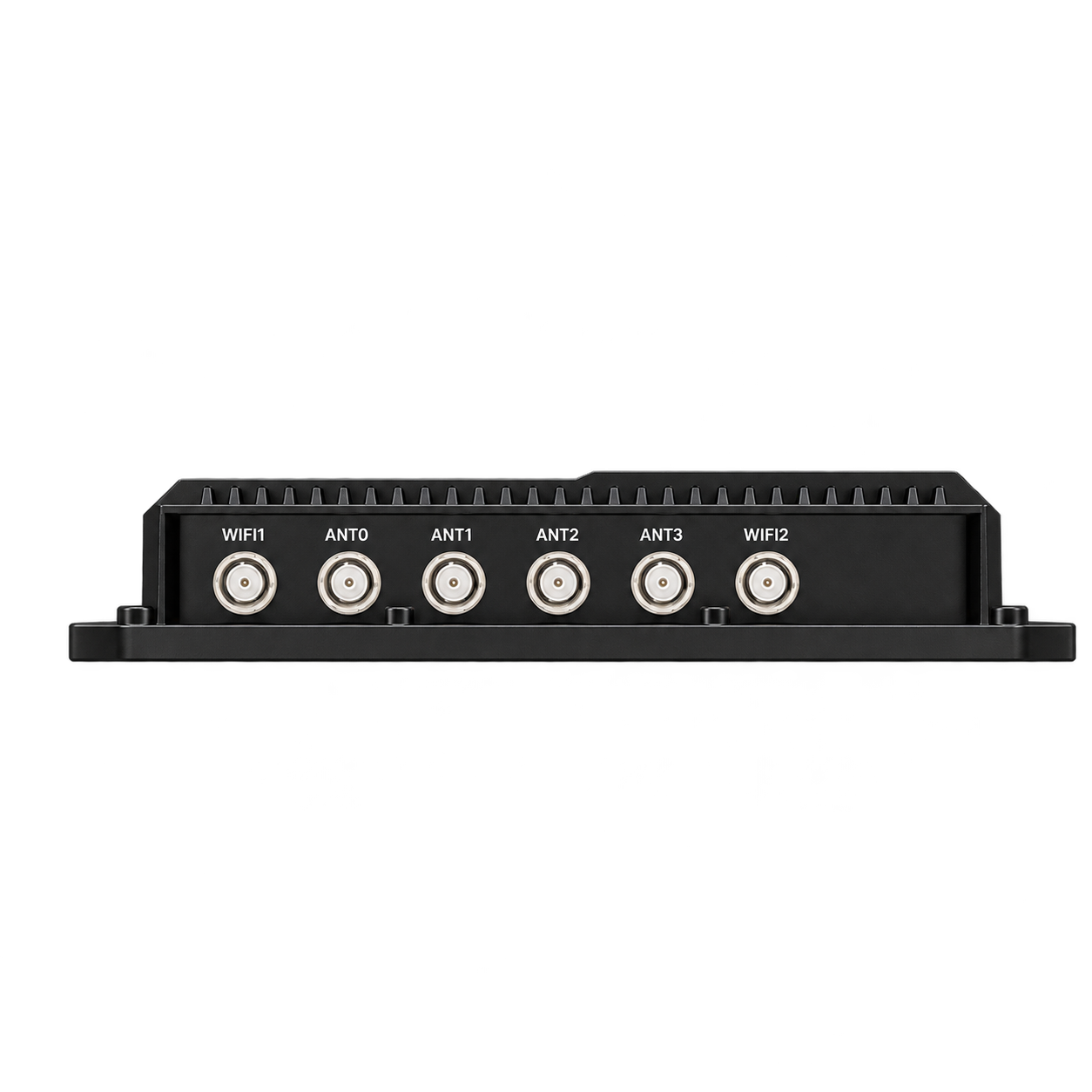

RF antenna connectors
Download PNG ↓

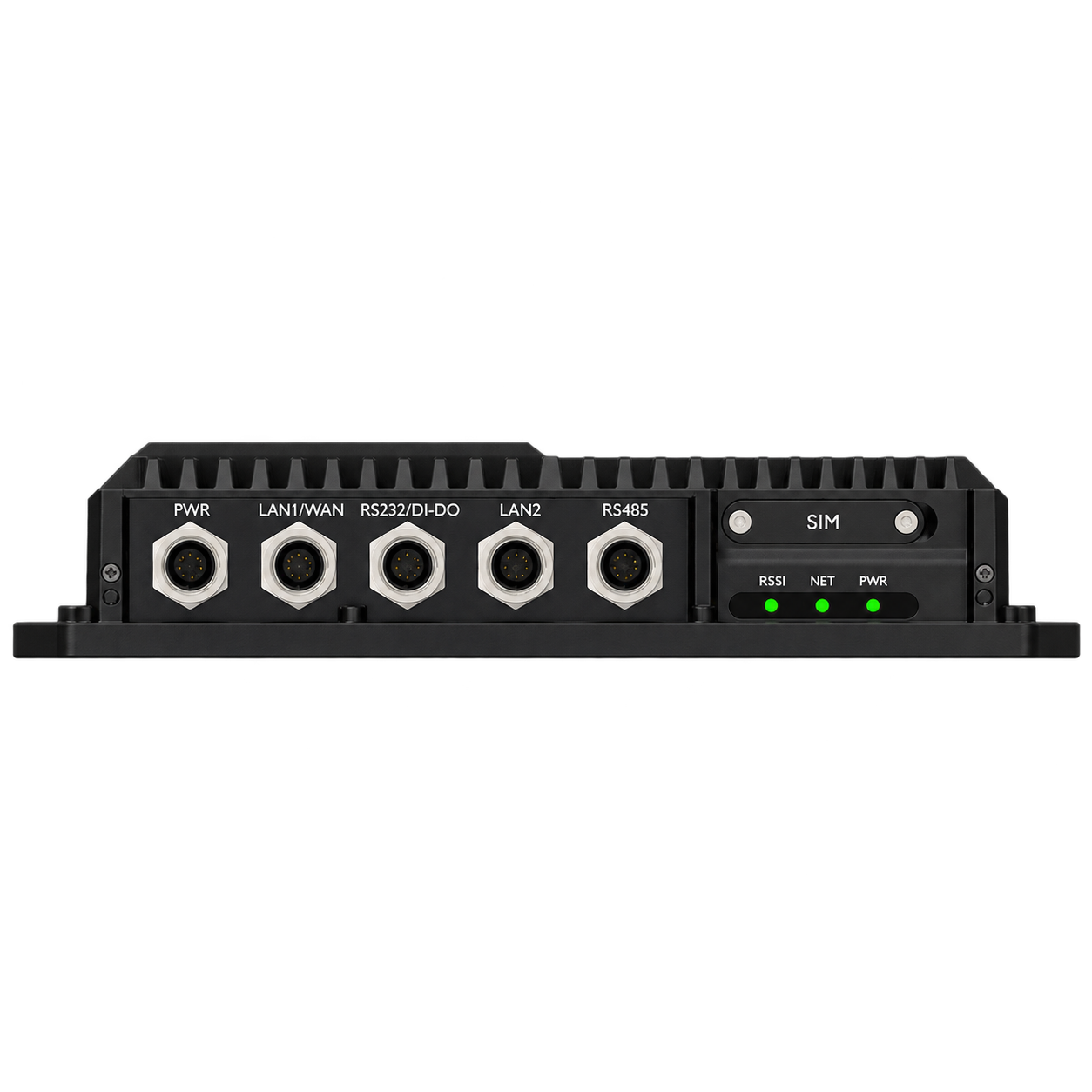

Industrial interfaces and SIM cover
Download PNG ↓

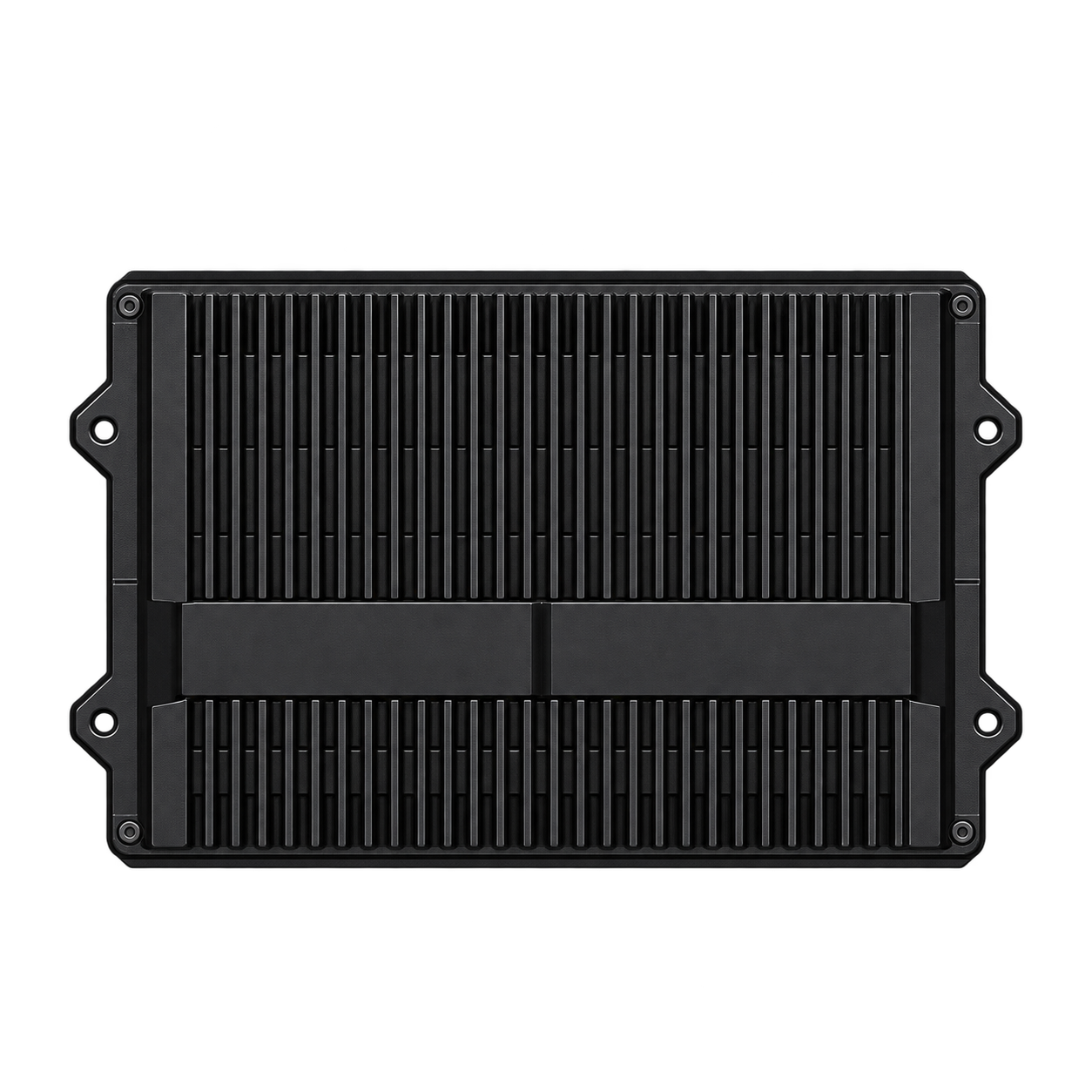

Top view
Download PNG ↓
COMPATIBLE ANTENNA
Complete the installation.
360° coverage for compatible cellular and WiFi / WiMesh RF chains.
360WB-5G-10P-TNC
4 cellular ports + 6 WiFi ports. IP65. Ten-port omnidirectional antenna.
Confirm the RF connector and cable configuration for your installation.
INSTALLATION NOTES
Install. Connect. Configure.
Deployment checklist for MEGAMESH-PRO X1.
Prepare the SIM
With power disconnected, insert an active nano-SIM for a compatible mobile network. Secure the SIM cover.
Mount the router
Secure the unit with suitable outdoor mounting hardware. Connect the matched cellular and WiFi / WiMesh antennas.
Connect power and Ethernet
Connect the specified 24 V DC supply and Ethernet network using the appropriate M12 cables. Seal all outdoor connections.
Configure cellular and wireless access
Set the operator APN, configure WiMesh and local WiFi 6 access, then verify cellular and network connectivity.
