LUCEOR WIRELESS

Professional
WiFi.

High-performance connectivity.
Indoors. Outdoors. Across sites.

Explore the lineup
Access. Backhaul. Control.

PROFESSIONAL 7 WIFI LINEUP

Compare WiFi access points, wireless links and controllers for your deployment.

01 / FIXED WIRELESS

Fixed Wireless Infrastructure

High-capacity links between buildings, sites and remote facilities.

Specification

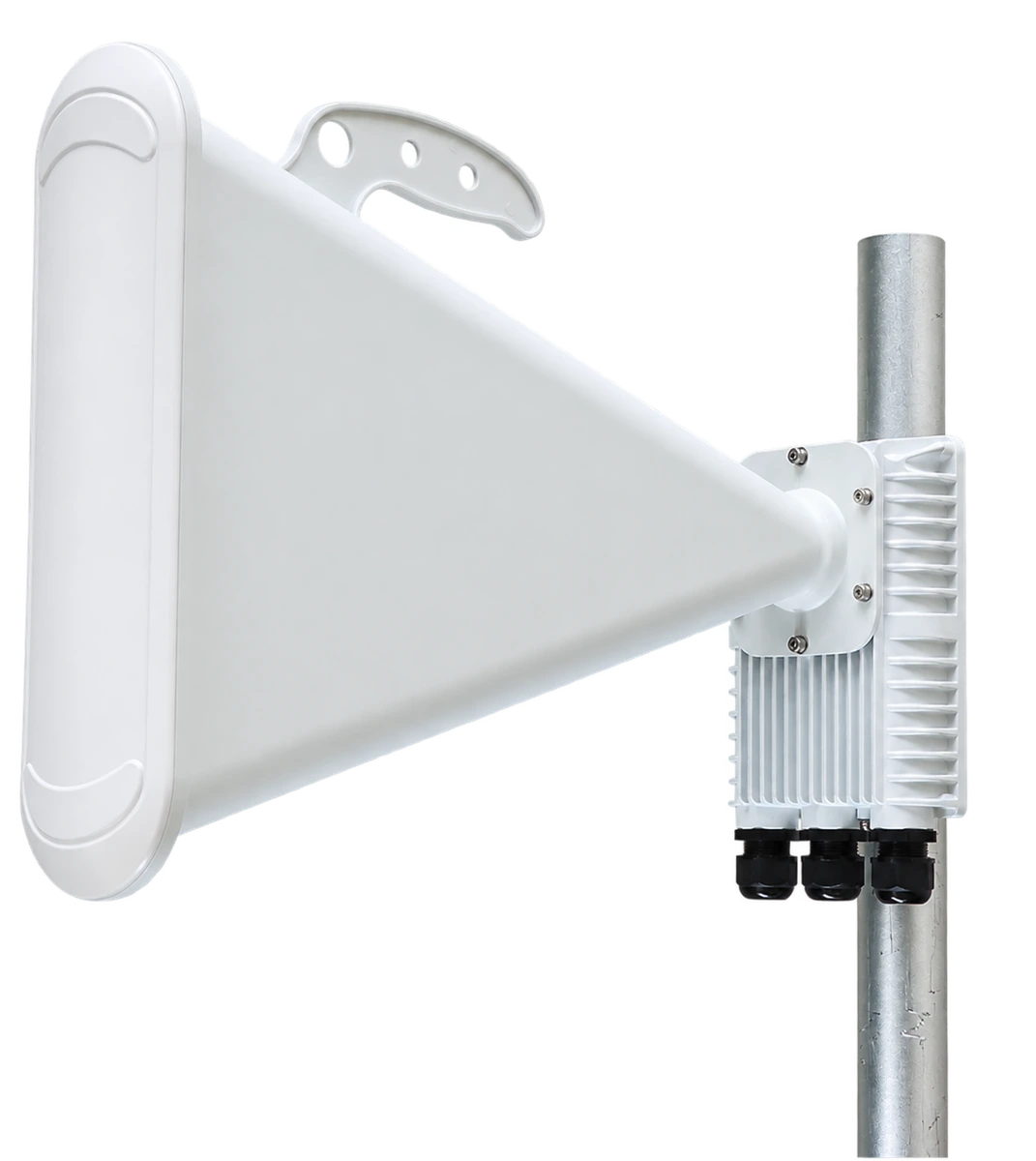

SECTOR E90SECTOR E90

Connect multiple remote sites

Tech SpecsBuy

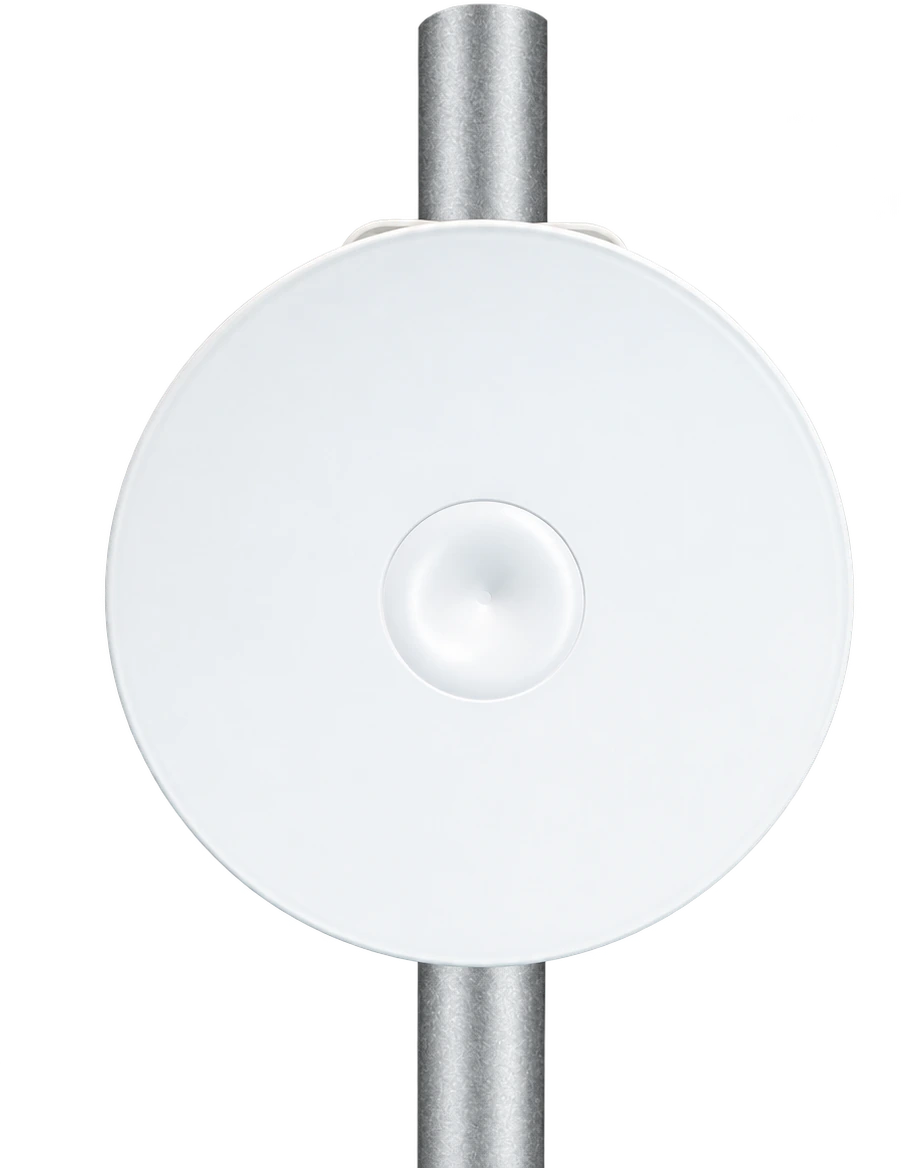

LITE E20LITE E20

Compact directional connectivity

Tech SpecsBuy

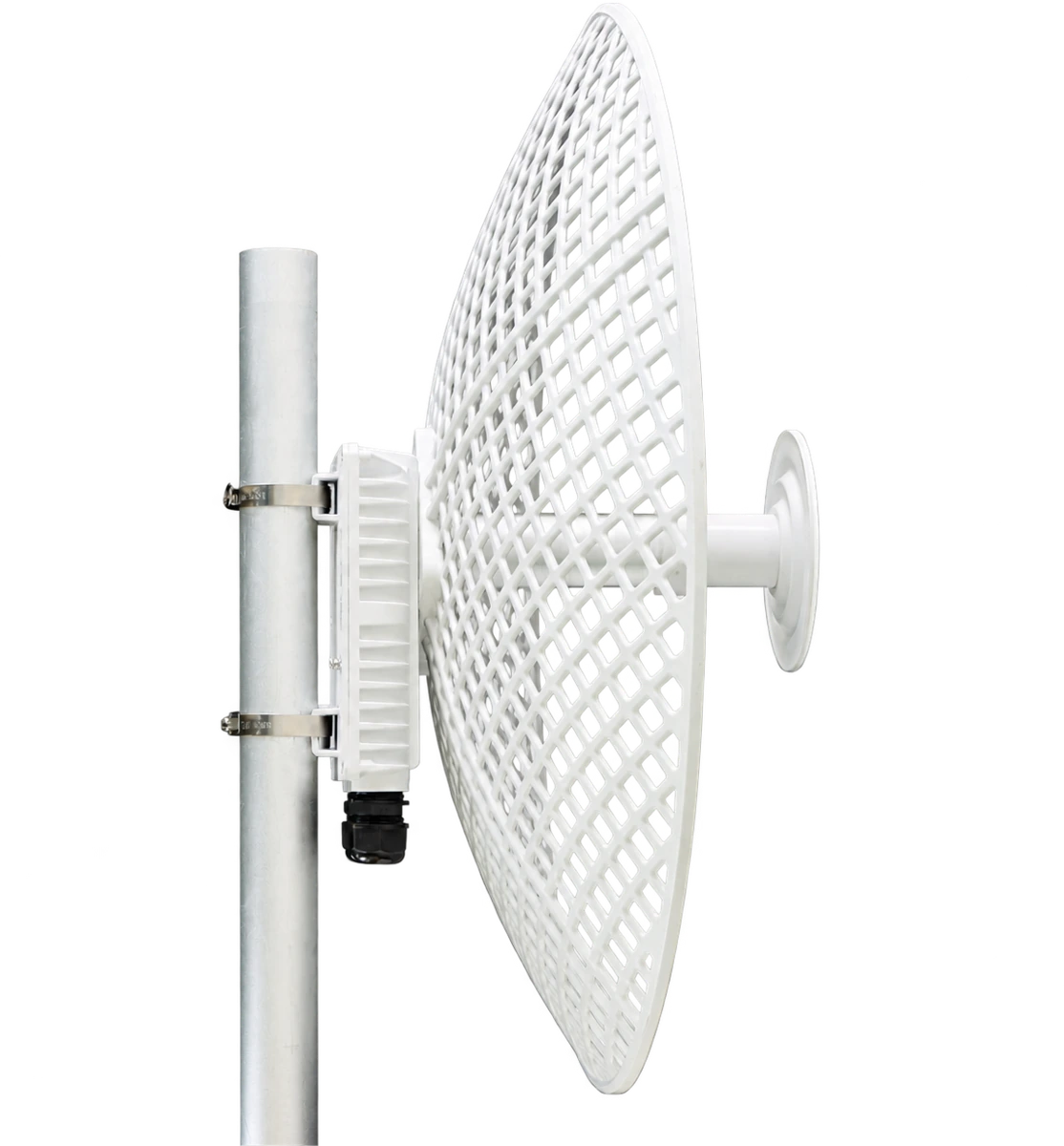

HD E30HD E30

Long-distance connectivity

Tech SpecsBuy

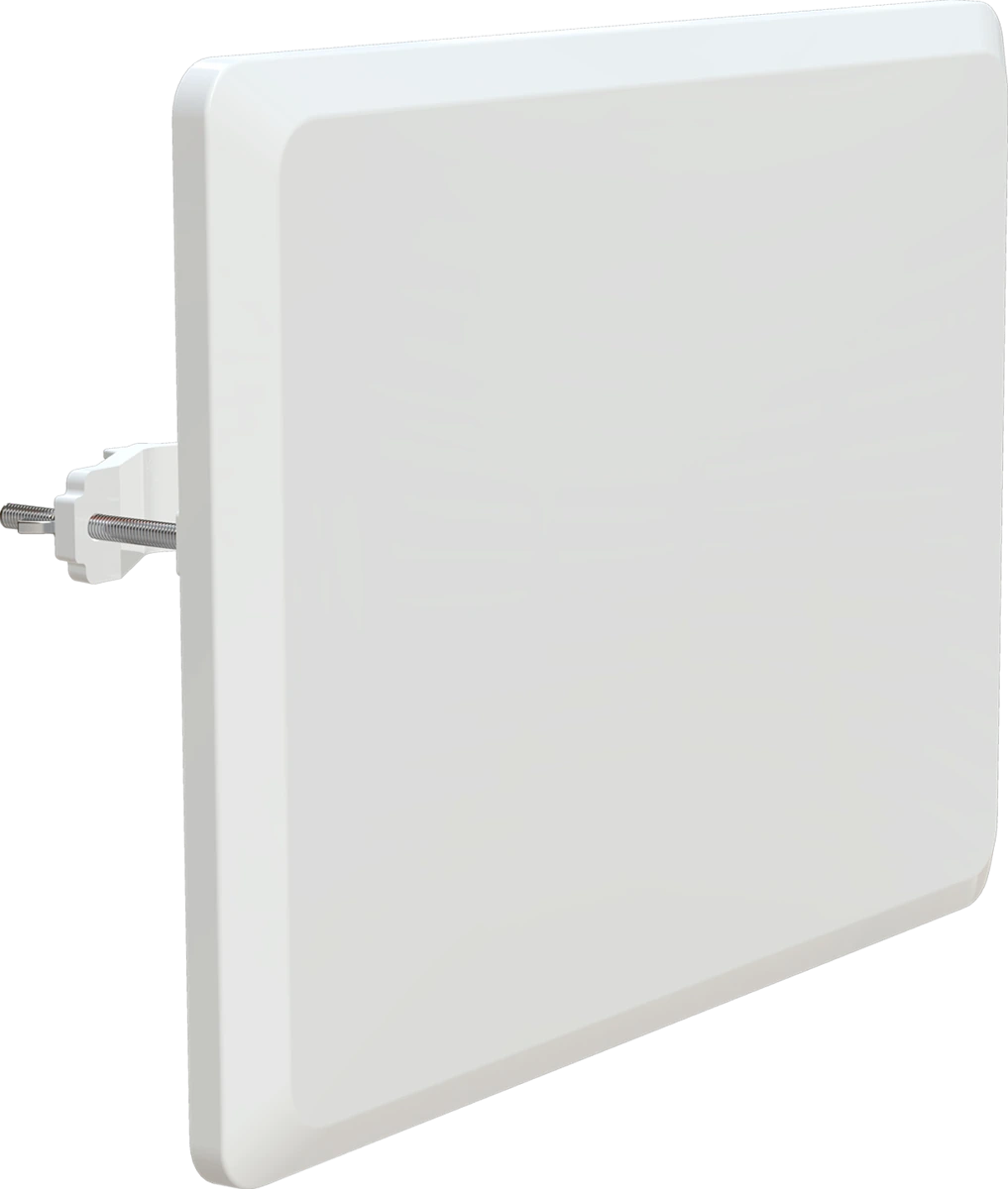

PANEL X25PANEL X25

High-capacity 4x4 connectivity

Tech SpecsBuy
Primary applicationPoint-to-multipoint base stationPtP bridge / PtMP clientLong-range PtP backhaulHigh-capacity PtP backhaul
Wireless technologyWiFi 7WiFi 7WiFi 7WiFi 6
Antenna18 dBi sector, 90°20 dBi dish30 dBi Dish25 dBi panel
Spatial Diversity2x2 MIMO2x2 MIMO2x2 MIMO4x4 MIMO
Throughput2.3 Gbps+2.3 Gbps+2.3 Gbps+3.6 Gbps+
Maximum PHY rate5.76 Gbps5.76 Gbps5.76 Gbps4.804 Gbps
Link distanceDepends on client configuration10 km+Up to 30 km8 km+
Network interfaces2.5 GbE + 2.5G SFP2.5 GbE + 2.5G SFP2.5 GbE + 2.5G SFP2.5 GbE + GbE
Weather protectionIP67IP67IP67IP67

Throughput and link distance depend on the radio configuration, channel width, line of sight and operating conditions. Maximum throughput and maximum range are not simultaneous guarantees. PHY rates represent theoretical radio rates.

02 / VIDEO CONNECTIVITY

CCTV Backhaul

Compact outdoor radios. Connected cameras. A clear view of your site.

Specification

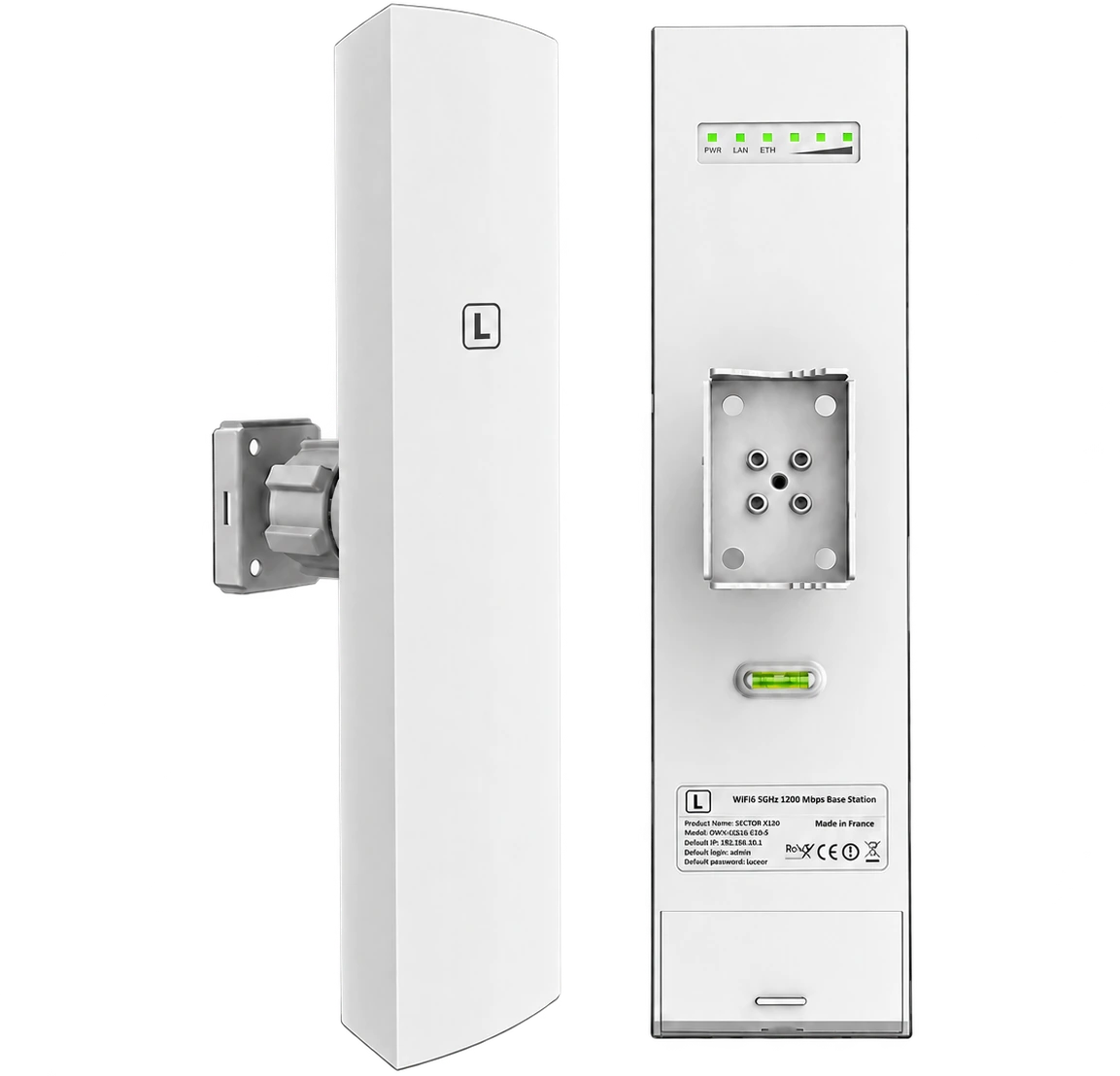

SECTOR X120SECTOR X120

Aggregate remote camera connections

Tech SpecsBuy

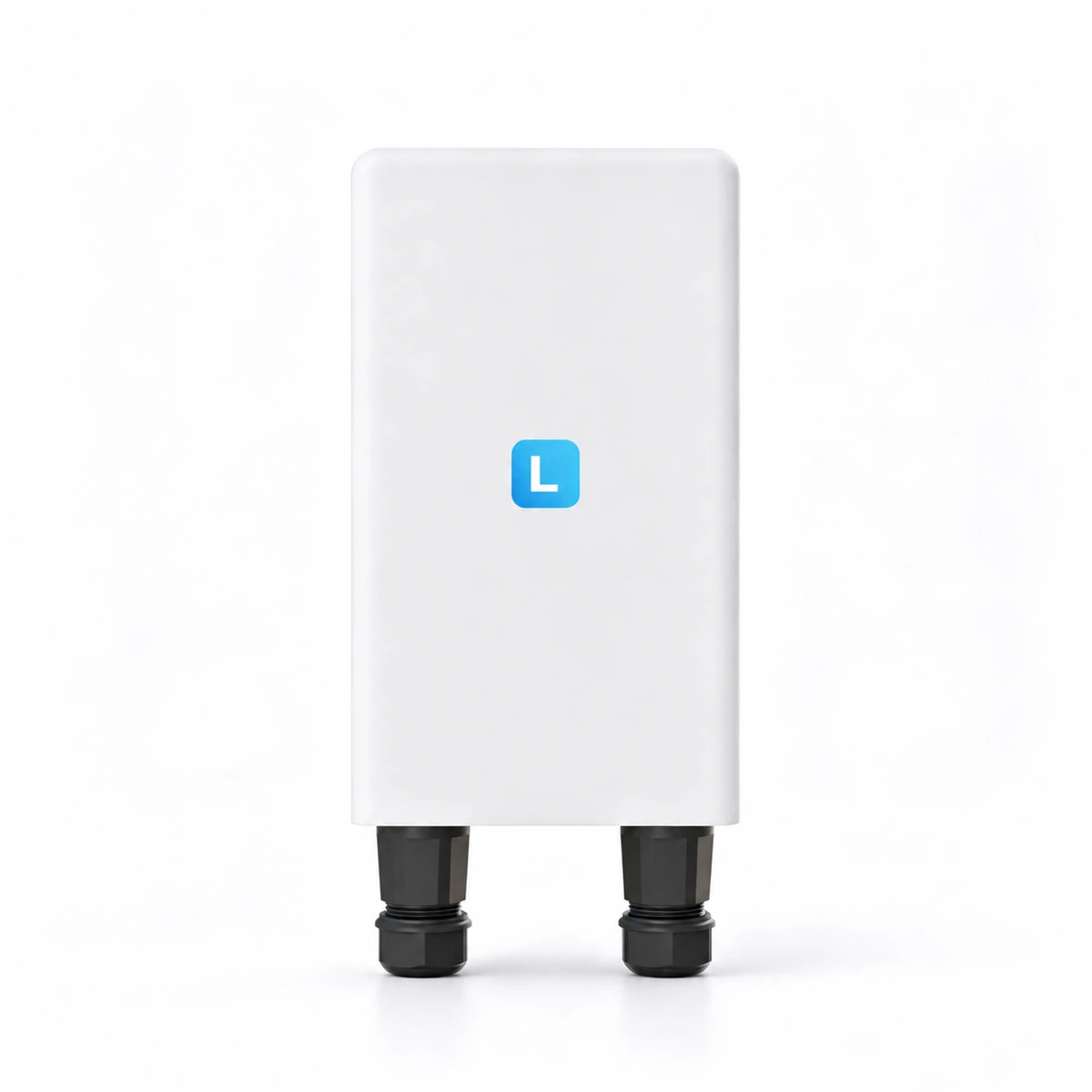

LITE E16LITE E16

Connect cameras with a compact radio

Tech SpecsBuy
Primary applicationCCTV aggregation base stationRemote camera / camera cluster
Wireless technologyWiFi 6WiFi 7
Antenna16 dBi · 120° sector16 dBi directional
Spatial Diversity2x2 MIMO2x2 MIMO
Network interfaces1× GbE2× 2.5 GbE
Weight0.77 kg0.8 kg
Dimensions395 × 100 × 90 mm180 × 105 × 31 mm
Outdoor constructionWeatherproof ASA enclosureIP67 enclosure
Operating temperature−20 to +70°C−35 to +50°C
Power24 V passive PoEPoE 22–56 V / DC 12–48 V

Select the frequency variant and radio configuration for the proposed link. Camera capacity is sized from the video bitrate, recording profile and available link throughput.

03 / OUTDOOR ACCESS

Outdoor WiFi

Omnidirectional coverage, directional capacity and rugged mesh connectivity.

Specification

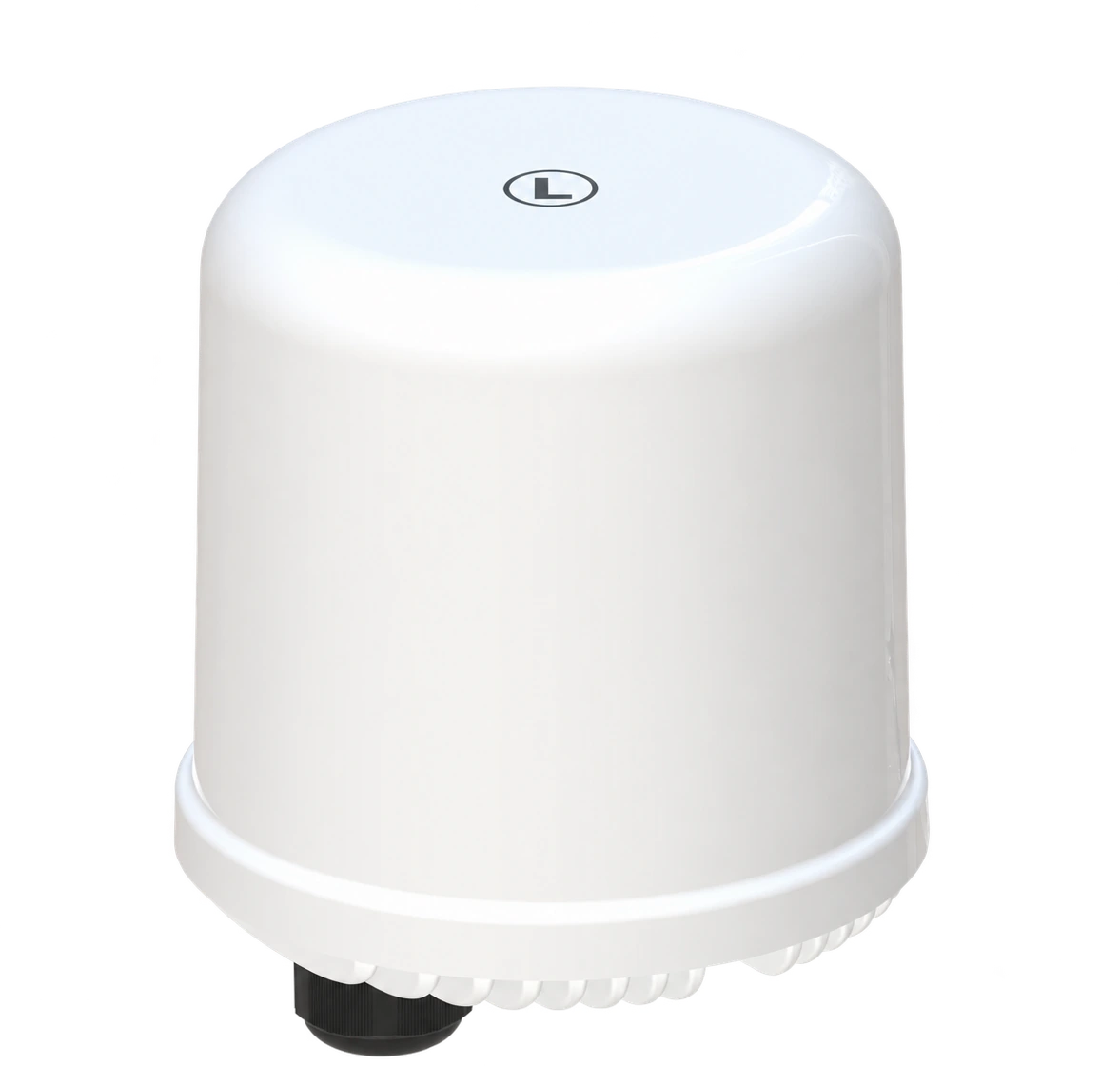

OUTDOOR X2OUTDOOR X2

Compact outdoor WiFi

Tech SpecsBuy
OUTDOOR E6OUTDOOR E6

Directional high-capacity WiFi

Tech SpecsBuy

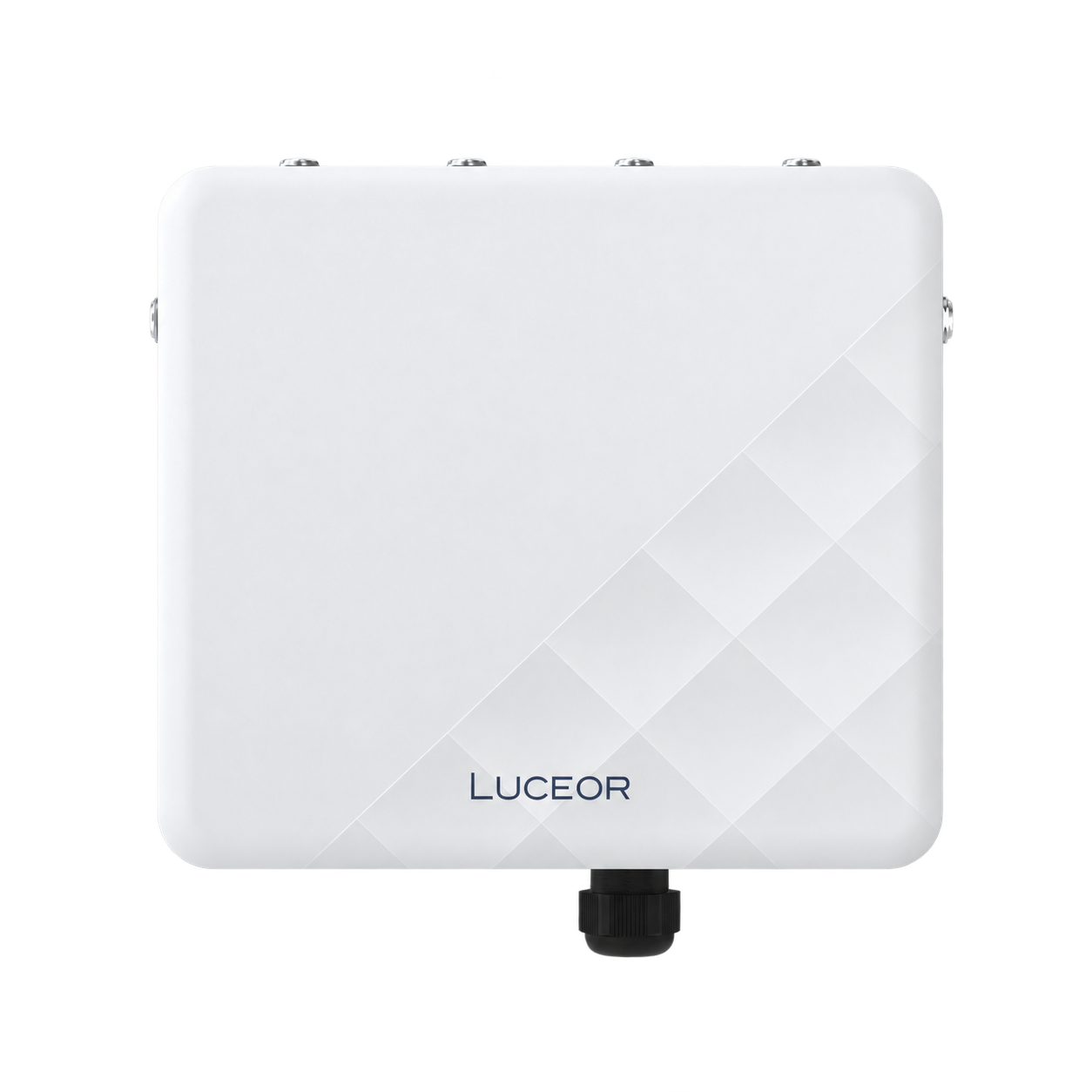

ARMOR X2ARMOR X2

Rugged metal outdoor WiFi

Tech SpecsBuy
ARMOR X3ARMOR X3

Rugged WiFi with mesh extension

Tech SpecsBuy
PositioningCompact outdoor WiFiDirectional high-capacity WiFiRugged metal outdoor WiFiRugged WiFi with mesh extension
Wireless technologyWiFi 6WiFi 7WiFi 6WiFi 7
Radio configurationDual-band 2.4 / 5 GHz5 or 6 GHz directional radioDual-band 2.4 / 5 GHz3 radios — 2.4 / 5 GHz / 5 or 6 GHz
Maximum radio rates574 + 2,402 Mbps11,528 Mbps WiFi574 + 2,402 Mbps688 + 2,882 + 2,882 Mbps
Antenna configurationIntegrated omnidirectionalIntegrated 4x 19 dBi · 120°External antennasExternal antennas
Spatial Diversity2x2 MIMO4x4 MIMO2x2 MIMO2x2 MIMO
Network interfacesGbE2.5 GbE + 10G SFP+2× GbE + 1G SFP2× 2.5 GbE + 10G SFP+
Enclosure / protectionIP67IP67Metal · IP67Metal · IP67
Operating temperature−40 to +60°C−40 to +70°C−40 to +70°C−30 to +70°C
Distinctive benefitCompact all-round coverageDirectional capacityRugged dual-band accessRugged mesh integrated

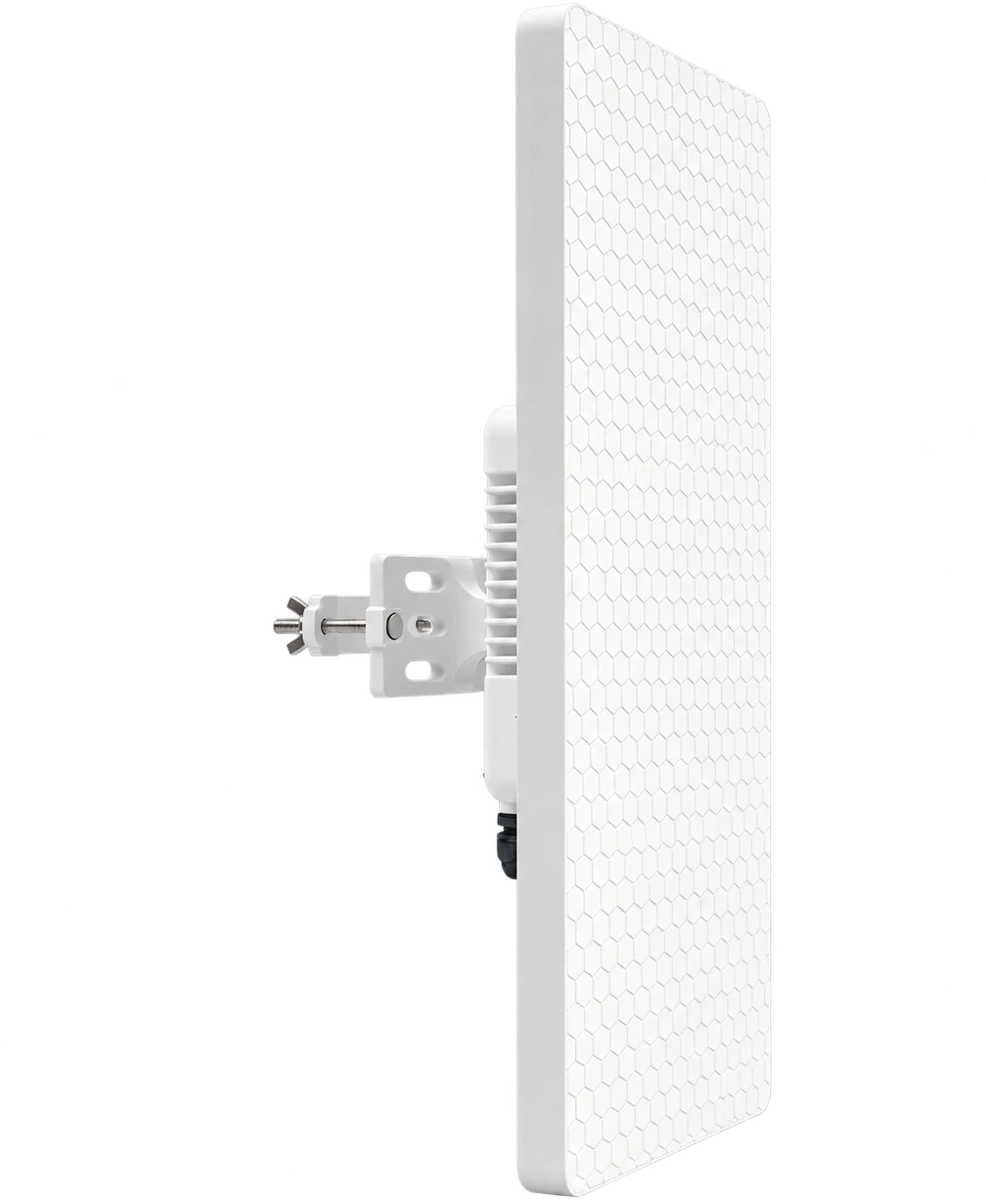

OUTDOOR E6
5 or 6 GHz PtMP operation. Four integrated 19 dBi antenna paths and 4x4 MIMO for high-capacity directional WiFi access.

ARMOR X3
The third radio operates in 5 or 6 GHz and can be configured as a WiFi access point or a mesh radio.

Radio rates are theoretical maximum rates, not application throughput. Available frequencies and channels depend on the country of operation.

04 / INDOOR ACCESS

Indoor WiFi

High-performance connectivity for professional buildings and connected facilities.

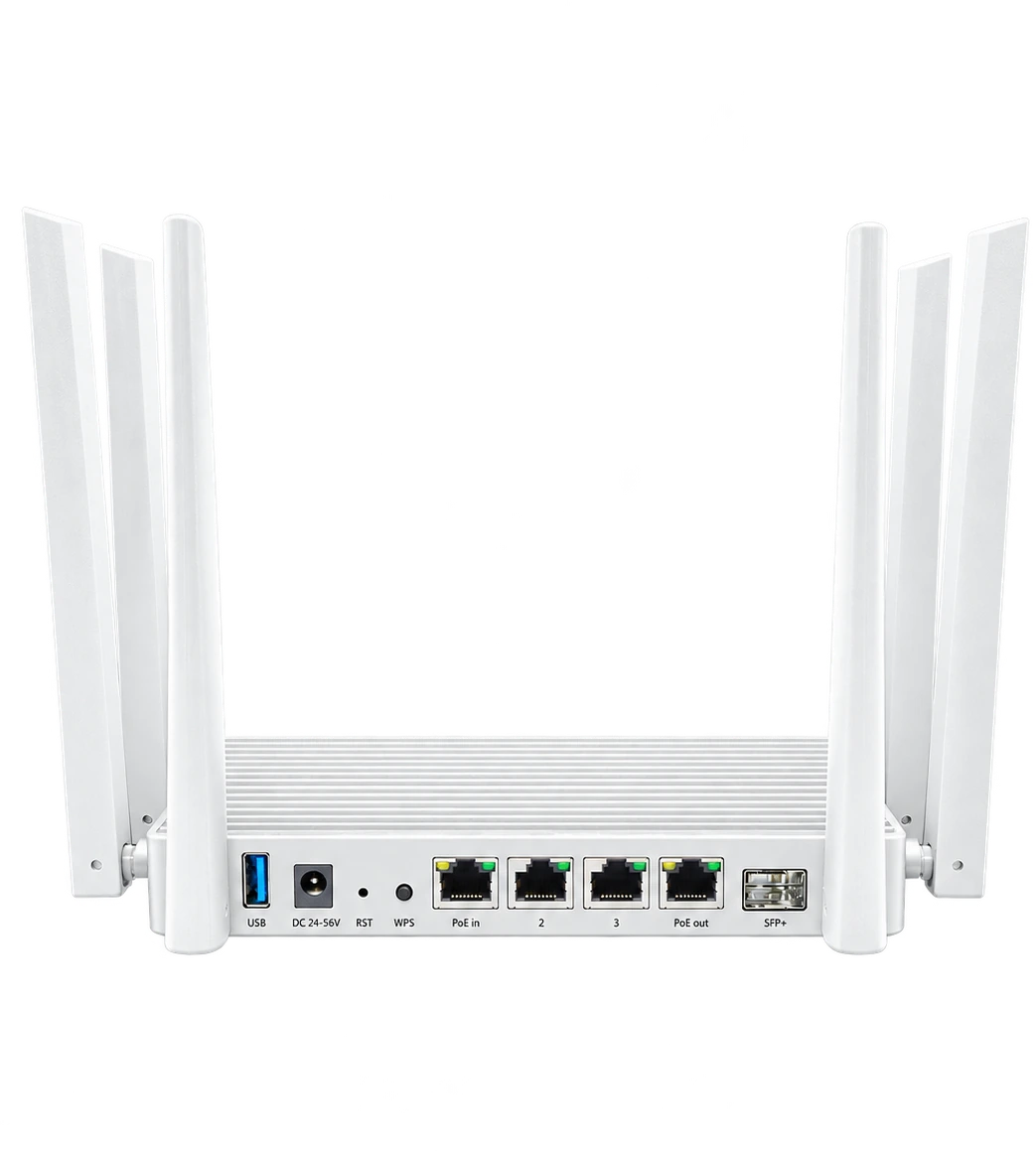

INDOOR E6
High-performance indoor routing and WiFi

INDOOR E6

Tri-band WiFi 7, four 2.5 GbE ports and a 10G optical interface for connected professional buildings.

Wireless technology
WiFi 7
Radio configuration
2.4 / 5 / 6 GHz
Maximum radio rates
574 + 2,880 + 5,760 Mbps
Network interfaces
4× 2.5 GbE + 10G SFP
MLO
Supported
VPN
OpenVPN / WireGuard / PPTP / L2TP
Tech SpecsBuy
05 / ENTERPRISE NETWORKS

Enterprise WiFi

Access points, dedicated controllers and centralized network supervision.

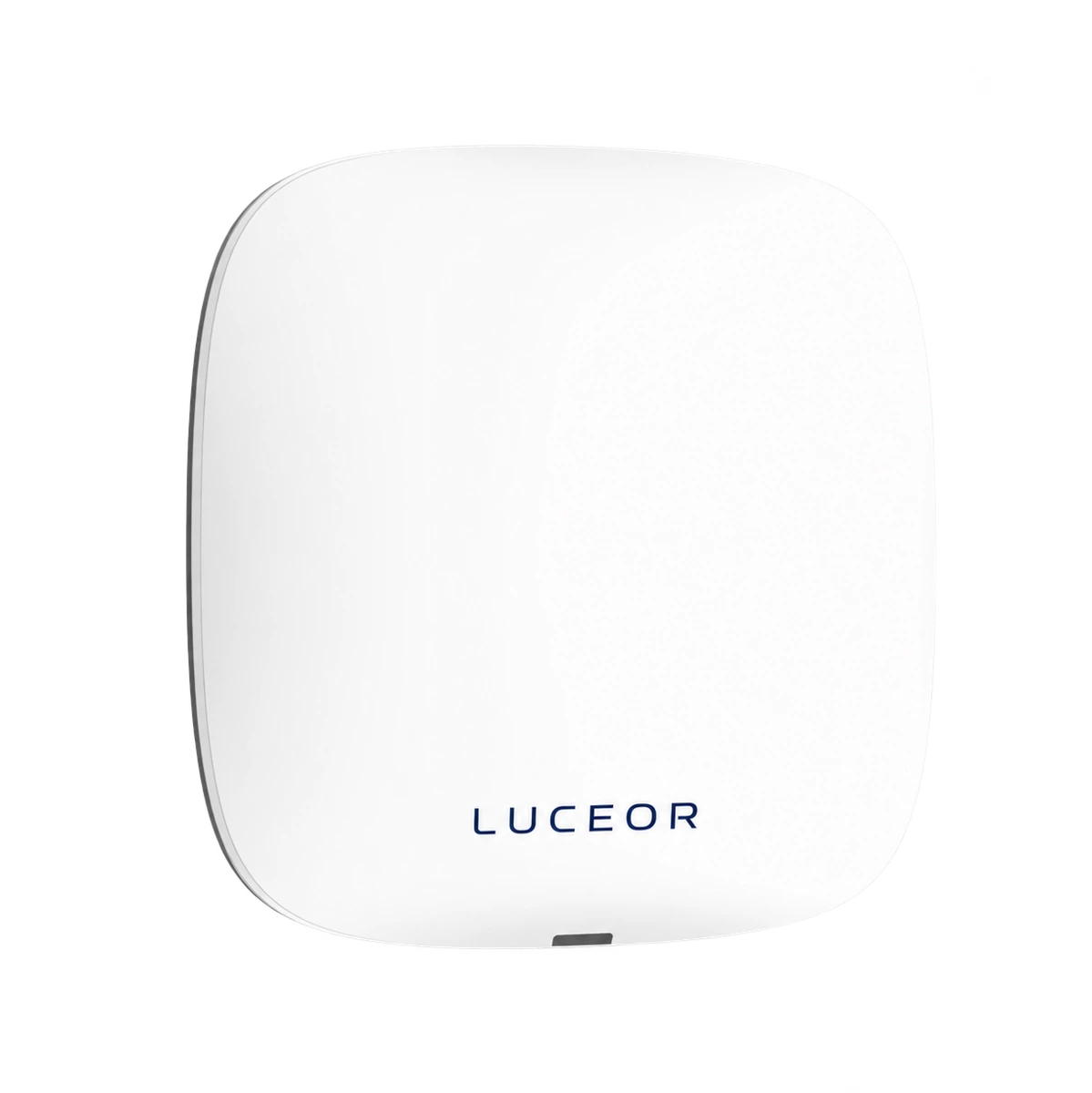

APEX E6
Centrally managed enterprise access

APEX E6

A ceiling access point combining three WiFi 7 radios, multi-gigabit connectivity and centralized controller management.

Wireless technology
WiFi 7
Radio configuration
2.4 / 5 / 5 GHz
Maximum radio rates
688 + 2,882 + 2,882 Mbps
Network interfaces
2.5 GbE + 10G SFP+
MLO
Supported
Roaming
802.11k/v
Tech SpecsBuy

WiFi Controllers

Choose the platform and interface capacity for your deployment.

Specification

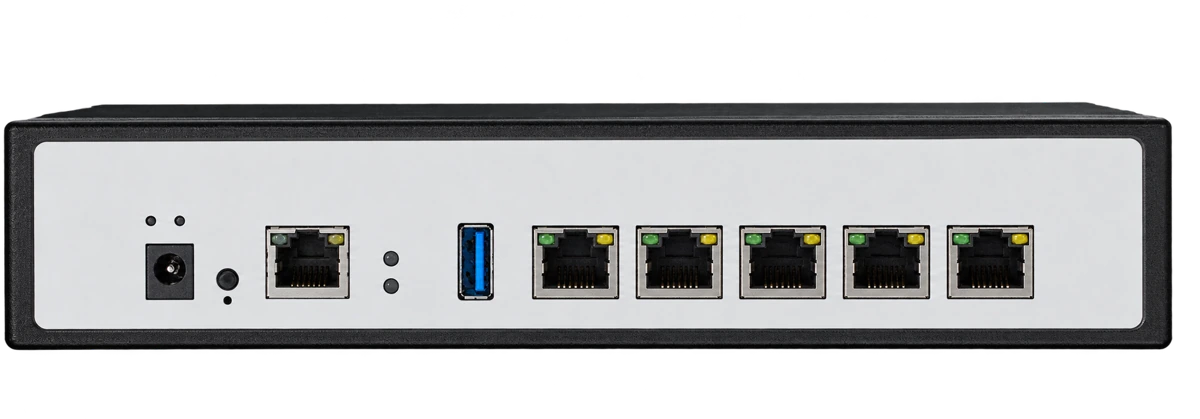

WIC 128WIC 128

Compact WiFi controller for small enterprise deployments.

Tech SpecsBuy

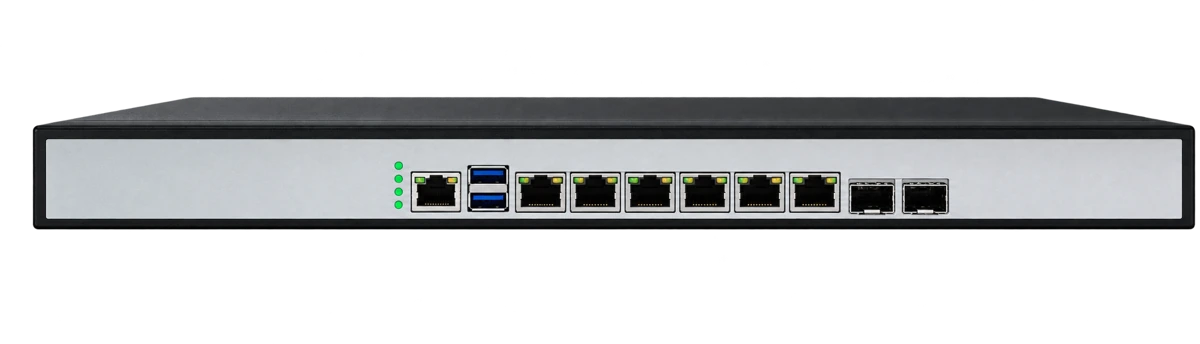

WIC 256WIC 256

Rack-mounted control for small and medium enterprise networks.

Tech SpecsBuy

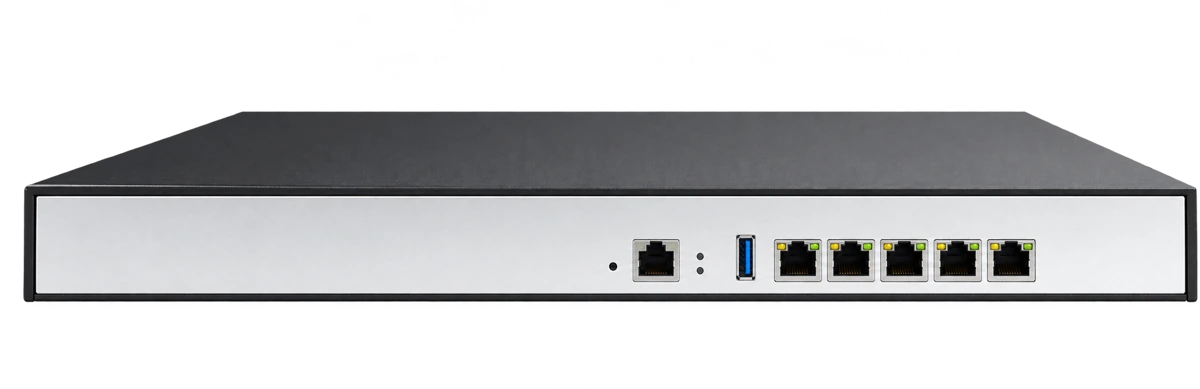

WIC 1024WIC 1024

Multi-gigabit control for campuses and multi-building networks.

Tech SpecsBuy

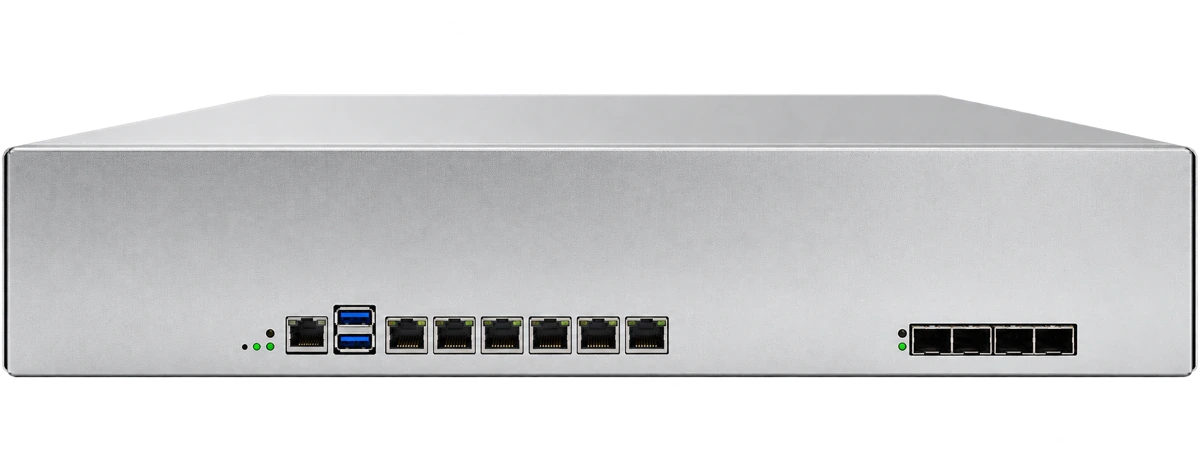

WIC 5120WIC 5120

High-capacity control with four 10G uplinks for large enterprise networks.

Tech SpecsBuy
Capacity (AP / User QTY)1282561,0245,120
PlatformMIPSMIPSX86X86
ChipsetMediaTek MT7621ATMediaTek MT7621ATJ6413W580
Flash / storage16 MB16 MB1 GB CF1 TB HD
RAM512 MB512 MB8 GB DDR416 GB DDR4
Ethernet ports5× 1 GbE5× 1 GbE6× 2.5 GbE6× 2.5 GbE
Optical ports——2× 1G SFP4× 10G SFP+
USB1× USB 3.01× USB 3.02× USB 3.02× USB 3.0
Console1111
Form factor9-inch housing1U rack1U rack2U chassis
Maximum port speed1 Gbps1 Gbps2.5 Gbps10 Gbps
VPNSupportedSupportedSupportedSupported
FirewallSupportedSupportedSupportedSupported
Cloud / remote managementSupportedSupportedSupportedSupported
Seamless roamingSupportedSupportedSupportedSupported
VLANSupportedSupportedSupportedSupported

“AP / User QTY” follows the capacity field in the controller selection matrix. For WIC 5120, the listed limits are 5,120 managed APs and 5,120 concurrent users.

BEYOND THE BUILDING

Distance is part
of the design.

Extend your network across buildings, industrial sites and remote facilities. Connect point to point or bring multiple locations into one infrastructure.

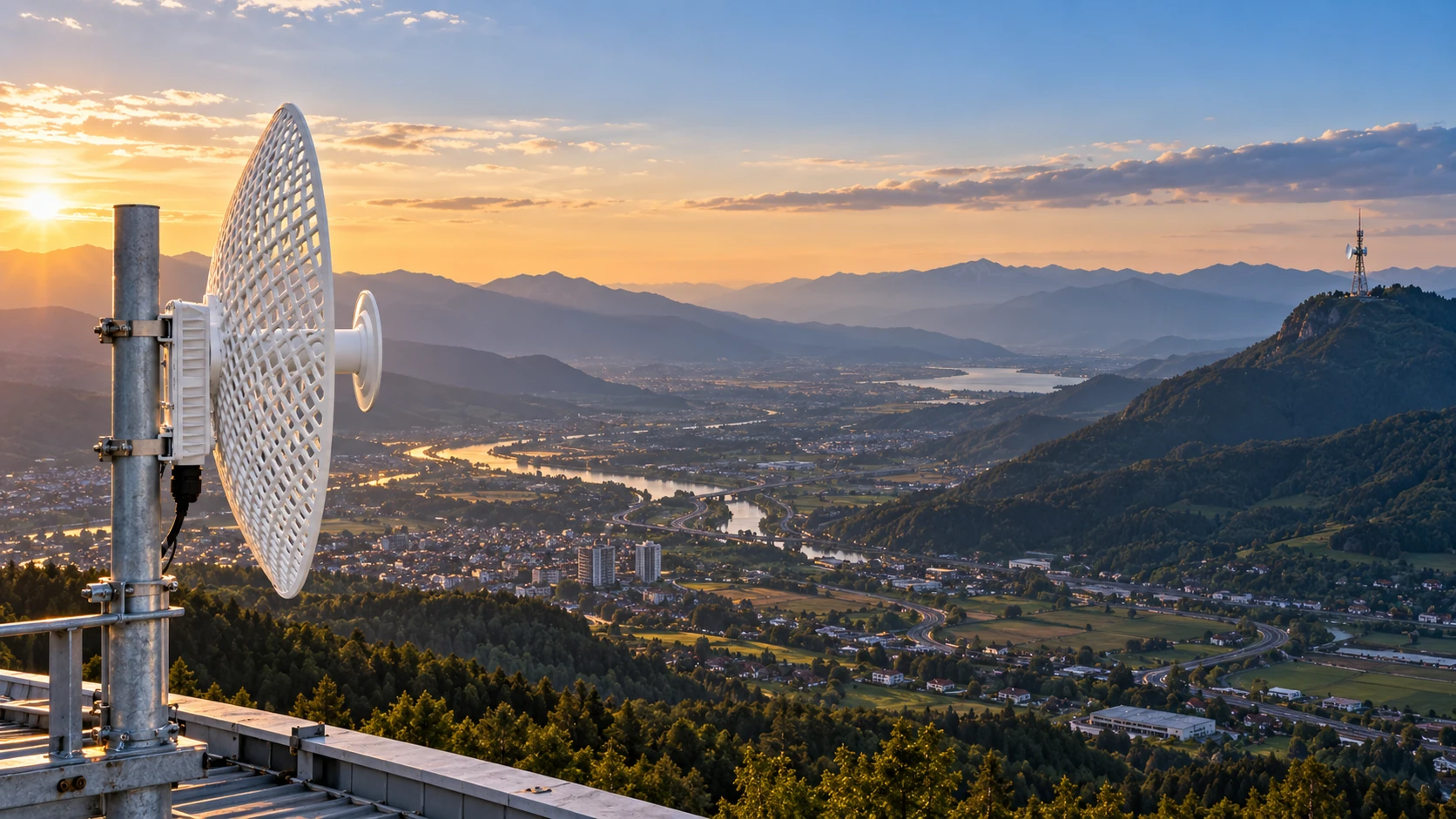

HD E30 rooftop dish directed across a vast valley toward a telecom tower on a distant mountain
Up to 30 kmLong-distance configurationsPtP & PtMPFlexible network architectures
Illustrative deployment. Link design is specific to each site.

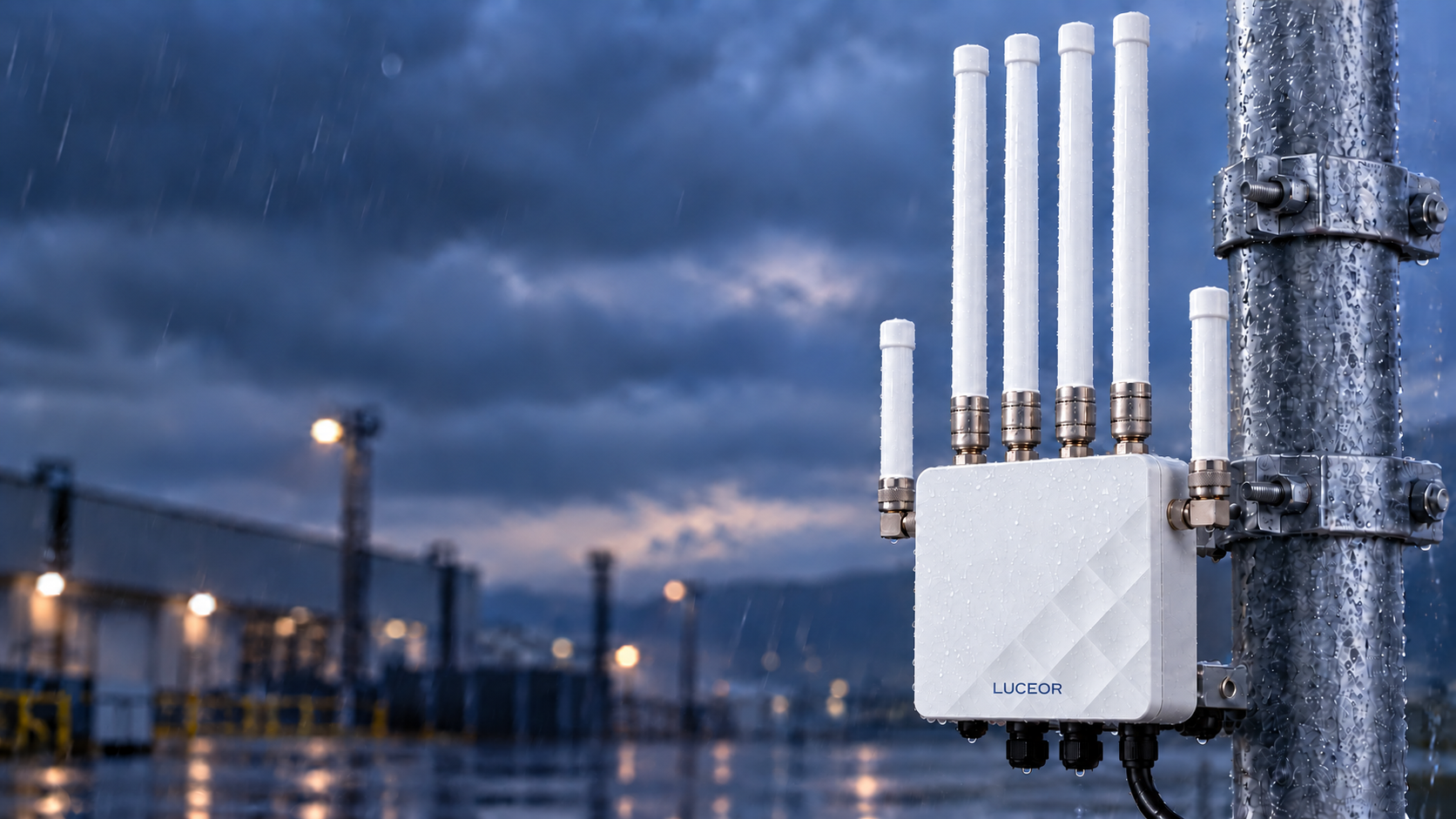

ARMOR X3 with faithful enclosure proportions, centered LUCEOR wordmark, six antennas and lower right cable
ENGINEERED FOR THE OUTDOORS

Built for exposed
environments.

Metal enclosures. Outdoor protection. Wide operating temperature ranges. Select the construction that fits your installation.

Rugged metalIP67 modelsPassive cooling
Explore outdoor WiFi
FROM THE CAMERA TO THE CONTROL ROOM

Bring every camera
into view.

Connect remote cameras and camera clusters across streets, car parks, industrial sites and temporary installations. Compact radios bring wireless connectivity close to the camera.

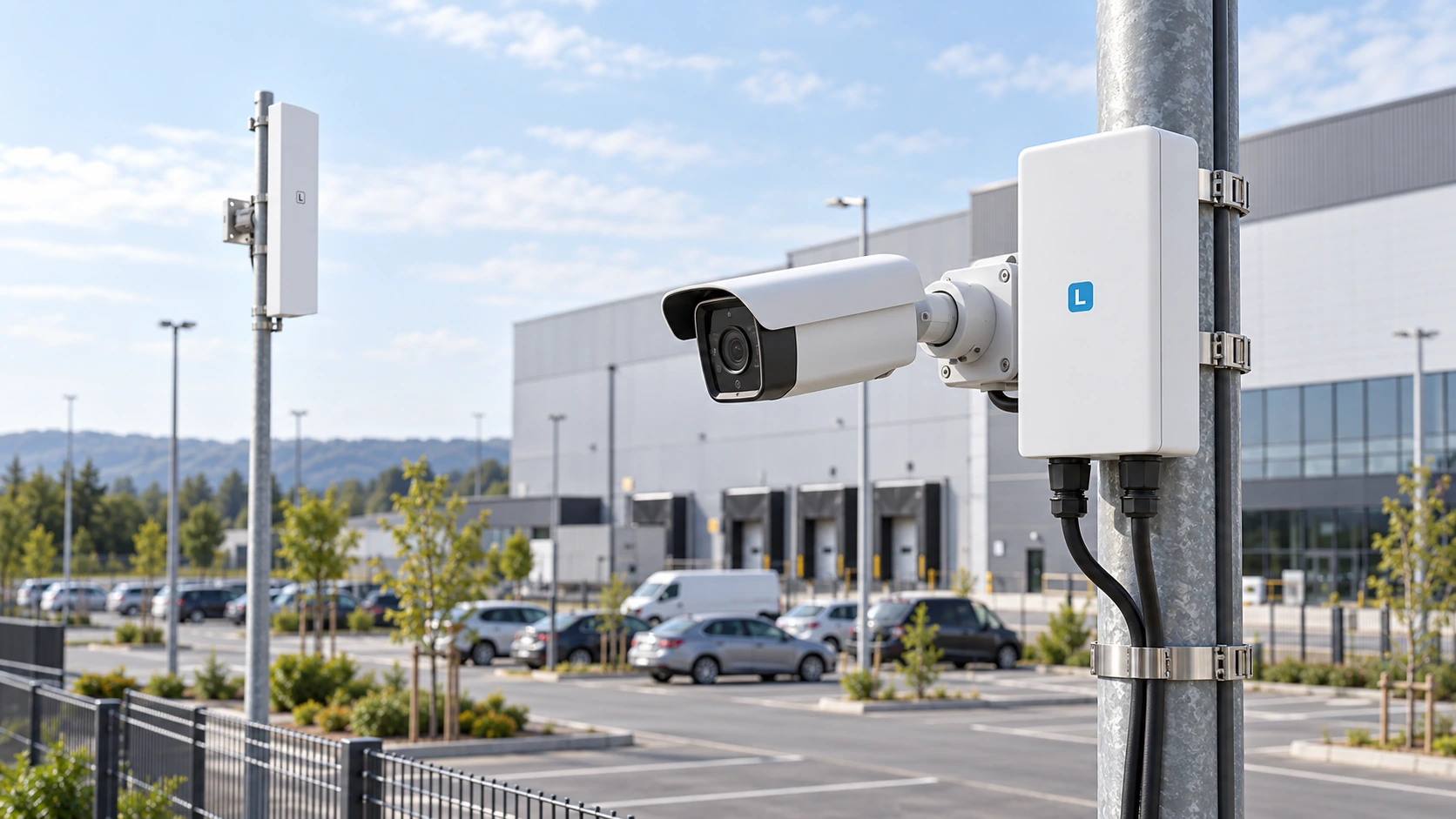

Illustrative LITE E16 installation beside a surveillance camera, with a distant sector radio
0.77 kgSECTOR X120
0.8 kgLITE E16

Compact radios
Pole-mount installation
PoE connectivity

Explore CCTV backhaul
MESHTOOL CLOUD

Enterprise WiFi.
Centrally managed.

Bring access, control and supervision together. Maintain network visibility with device monitoring, performance dashboards and alerts.

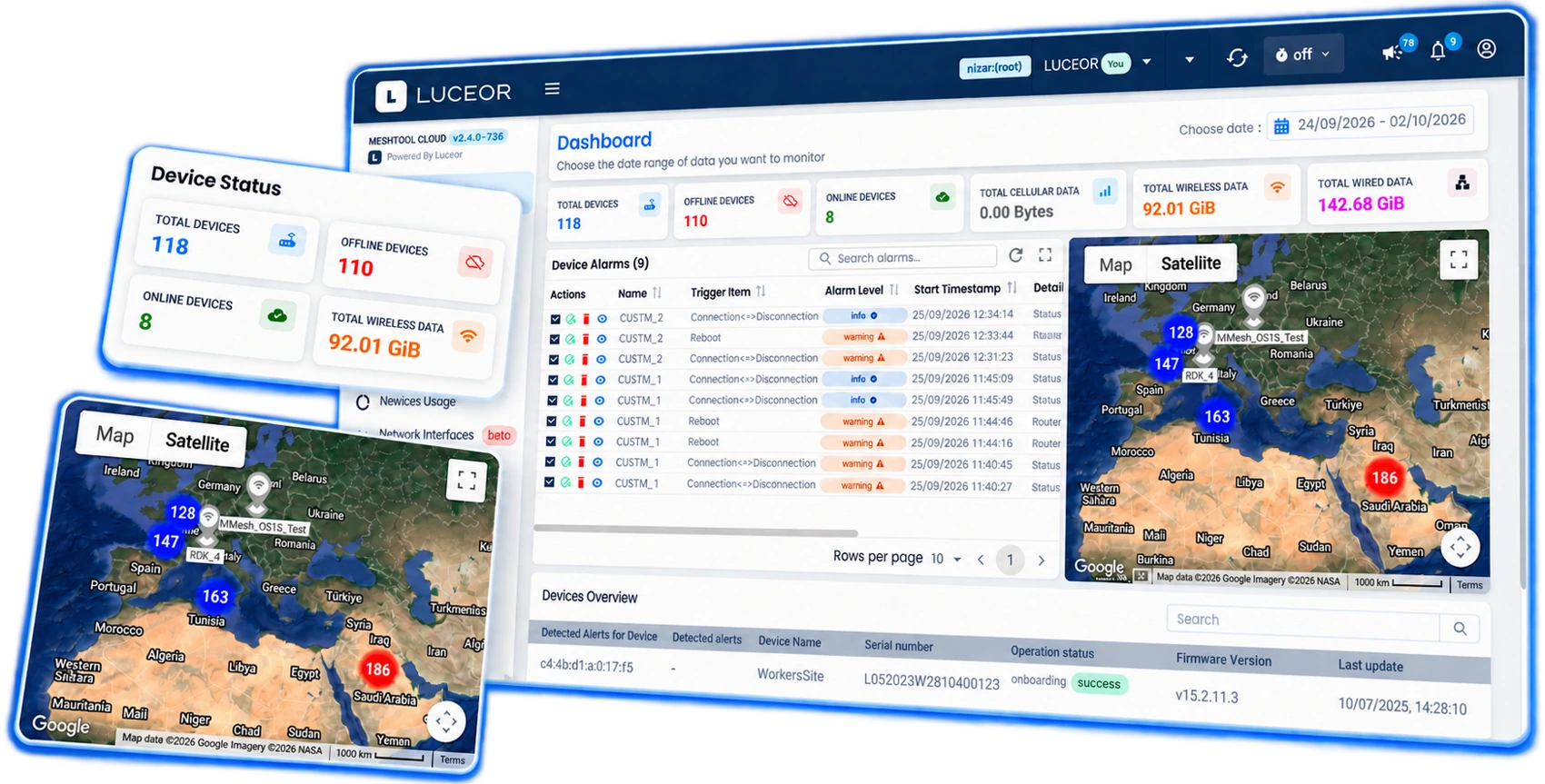

MeshTool Cloud dashboard showing network devices, events and map
01

Access

Indoor and outdoor access points matched to your coverage requirements.

02

Control

WIC controllers for AP configuration, authentication and network policies.

03

Supervision

MeshTool Cloud for network visibility, monitoring and operational alerts.

Request a MeshTool demonstration
COMPLETE YOUR INSTALLATION

Installation Essentials

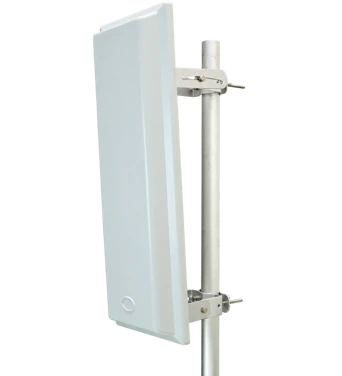

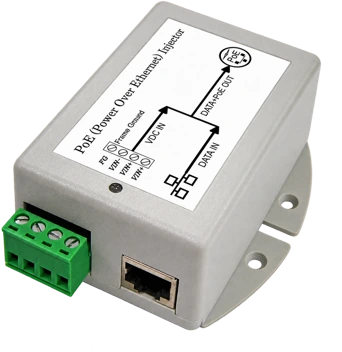

Antennas and power options, selected for your radio configuration.

FROM REQUIREMENTS TO DEPLOYMENT

Let's design your
wireless network.

Tell us about your sites, distances, devices and applications.

Discuss your project
