SECTOR E90
WiFi 790° sector base station
TECH SPECSBuy
Overview
| Product type | Point-to-multipoint base station |
|---|---|
| Wireless standard | WiFi 7 · IEEE 802.11be |
| Throughput | 2.3 Gbps+ |
| Maximum PHY rate | 5.76 Gbps |
| Client capacity | 100+ |
| Integrated antenna | 18 dBi asymmetrical horn · 90° sector |
| Spatial diversity | 2×2 MIMO |
| Network interfaces | 1× 2.5 GbE RJ45 1× 2.5G SFP |
| Weather protection | IP67 |
| Link distance | Depends on client configuration |
Radio & Antenna
| Operating frequency | 5.18–6.415 GHz |
|---|---|
| Channel widths | 20 / 40 / 80 / 160 / 320 MHz |
| Maximum transmit power | 27 dBm |
| Antenna type | Integrated asymmetrical horn |
| Antenna gain | 18 dBi |
| Polarization | Dual linear |
| Horizontal beamwidth | 90° at −6 dB |
| Vertical beamwidth | 25° at −6 dB |
| Antenna frequency range | 4.9–7.125 GHz |
| Antenna material | Die-cast aluminum |
| RF connections | Internal |
| RF filtering | Integrated 6 GHz filtering |
Hardware
| Processor | Qualcomm quad-core A53 · 1.5 GHz |
|---|---|
| Ethernet | 1× 2.5 GbE RJ45 with PoE input |
| Optical interface | 1× 2.5G SFP |
| Power method | 802.3at PoE+ or DC input |
| PoE input voltage | 22–56 V |
| DC input voltage | 12 V |
| Power consumption | <16 W |
| Surge suppression | 8 kV |
| Status LEDs | Power · System · WiFi |
| Reset | Reset button |
| Antenna dimensions | 500 × 340 × 100 mm |
| Weight | 2.5 kg |
| Operating temperature | −30 to +60 °C |
| Mounting | Pole mount · 30–50 mm pole diameter |
Networking & Management
| Wireless operating modes | AP WDS · Client WDS |
|---|---|
| Network modes | Bridge · Router |
| Firewall | Port forwarding · DMZ · ACL filtering |
| Wireless security | WPA-PSK · WPA2-PSK WPA/WPA2-PSK (AES / TKIP) |
| VLAN | IEEE 802.1Q |
| DHCP | Server · Client |
| Management interface | Web interface |
| SNMP | Supported |
| TR-069 | Supported |
PHY rate is theoretical. Actual throughput and range depend on channel width, radio configuration, line of sight and operating conditions.
Available frequencies, channel widths and transmit power depend on the country of operation.
STANDARD PACKAGE
In the box
The radio, antenna and installation components supplied with SECTOR E90.
SECTOR E90 radio with 18 dBi horn antenna×1
PoE power supply×1
Waterproof cable glands×3
Metal pole clamps×2
Quick Setup Guide×1
Ethernet cable, grounding cable and mounting pole are supplied separately.

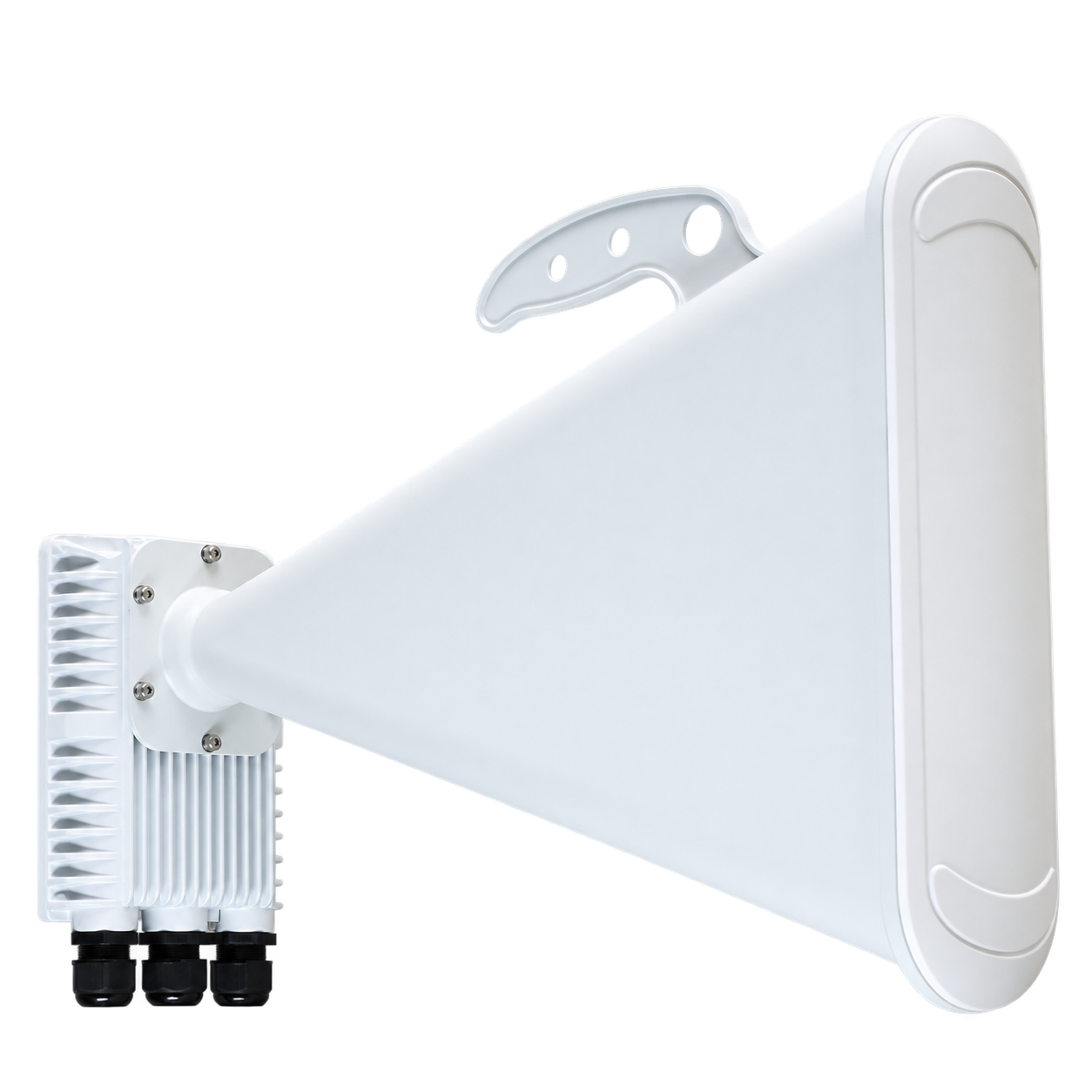

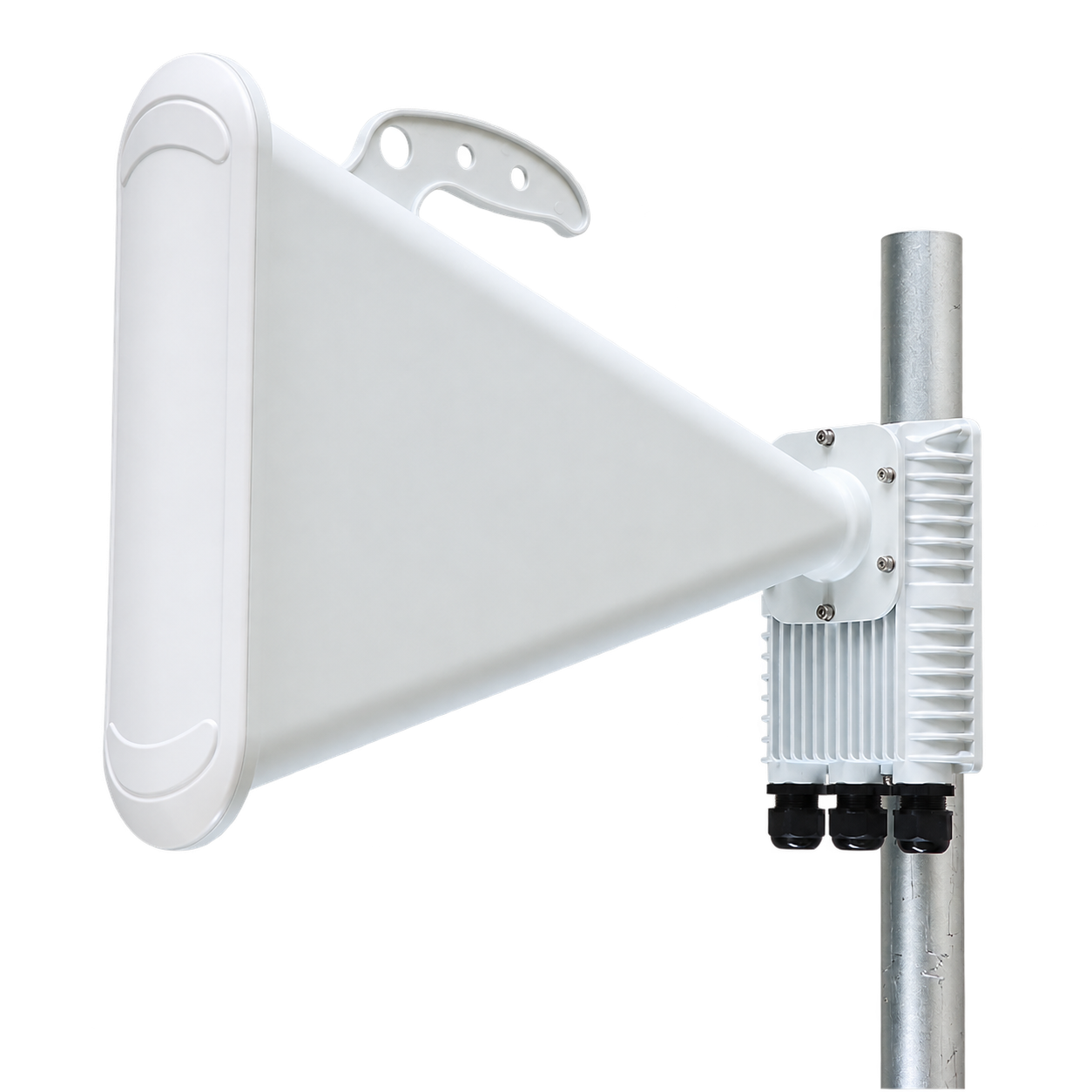

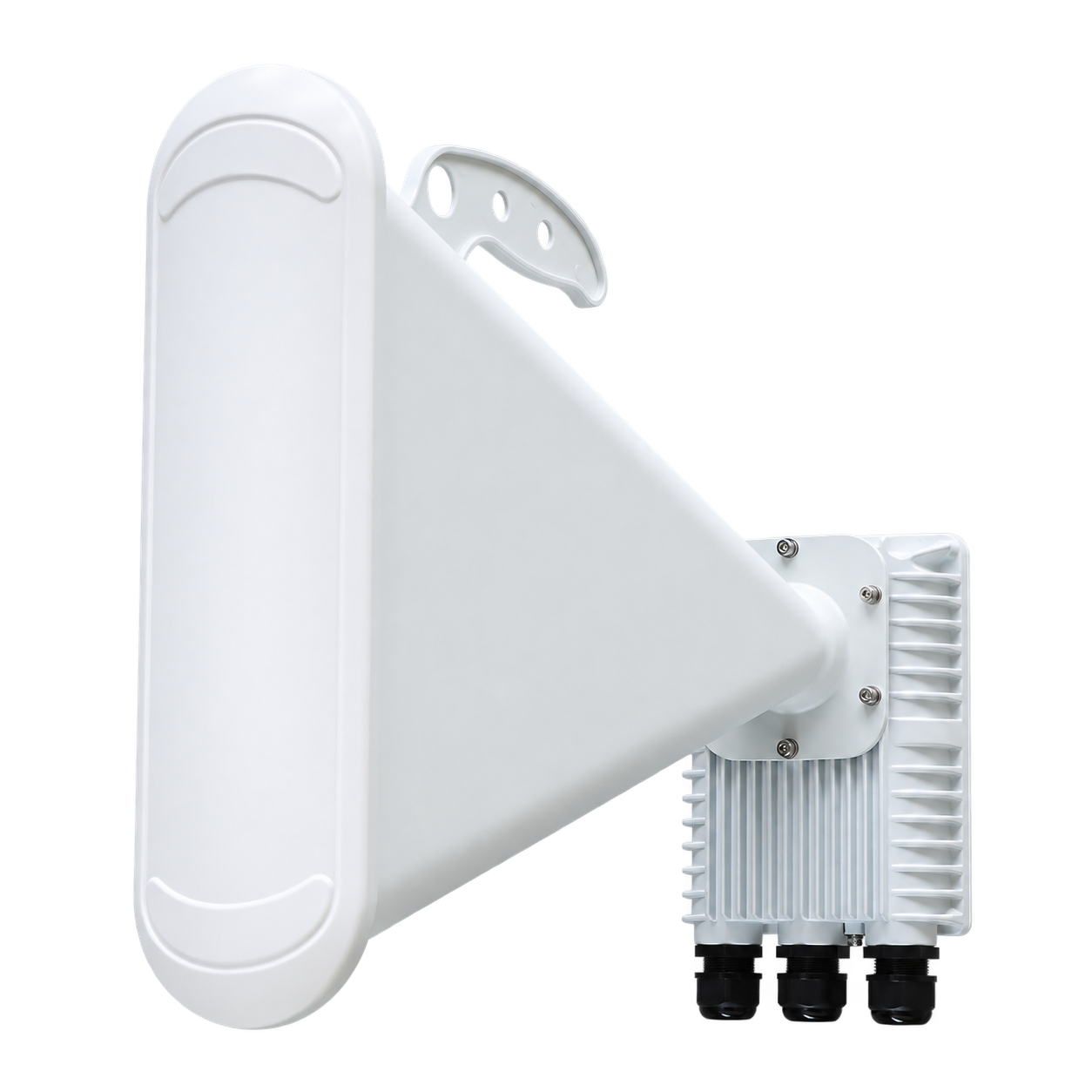

PRODUCT PHOTOGRAPHY
SECTOR E90, from every angle.
Explore the original product views.
INSTALLATION ESSENTIALS
Complete the installation.
Cabling and mounting requirements for your SECTOR E90 deployment.
Shielded Ethernet cable
CAT6 / CAT6A or higher, routed through the waterproof cable gland.
Supplied separatelyGrounding cable
Minimum 10 AWG (5.26 mm²), with a pre-terminated ring terminal.
Supplied separatelyMounting pole
30–50 mm diameter. Secure the radio using the two metal pole clamps.
Pole supplied separatelyPower supply included
Supports 802.3at PoE+ with 22–56 V PoE input, or a 12 V DC supply.
QUICK SETUP
Install. Connect. Configure.
Key installation steps for SECTOR E90.
Mount and align
Choose a position with a clear line of sight to the client sites. Attach the radio to a 30–50 mm pole with the two metal clamps.
Connect to ground
Attach the grounding cable to the integrated grounding screw before connecting power.
Connect the network and power
Pass a shielded CAT6 / CAT6A cable through the waterproof gland and connect it to ETH1 (PoE). Connect the other end to the PoE power supply.
Configure the radio
Access the web interface from a connected computer. Select the country of operation, then set the operating mode, frequency and wireless security.

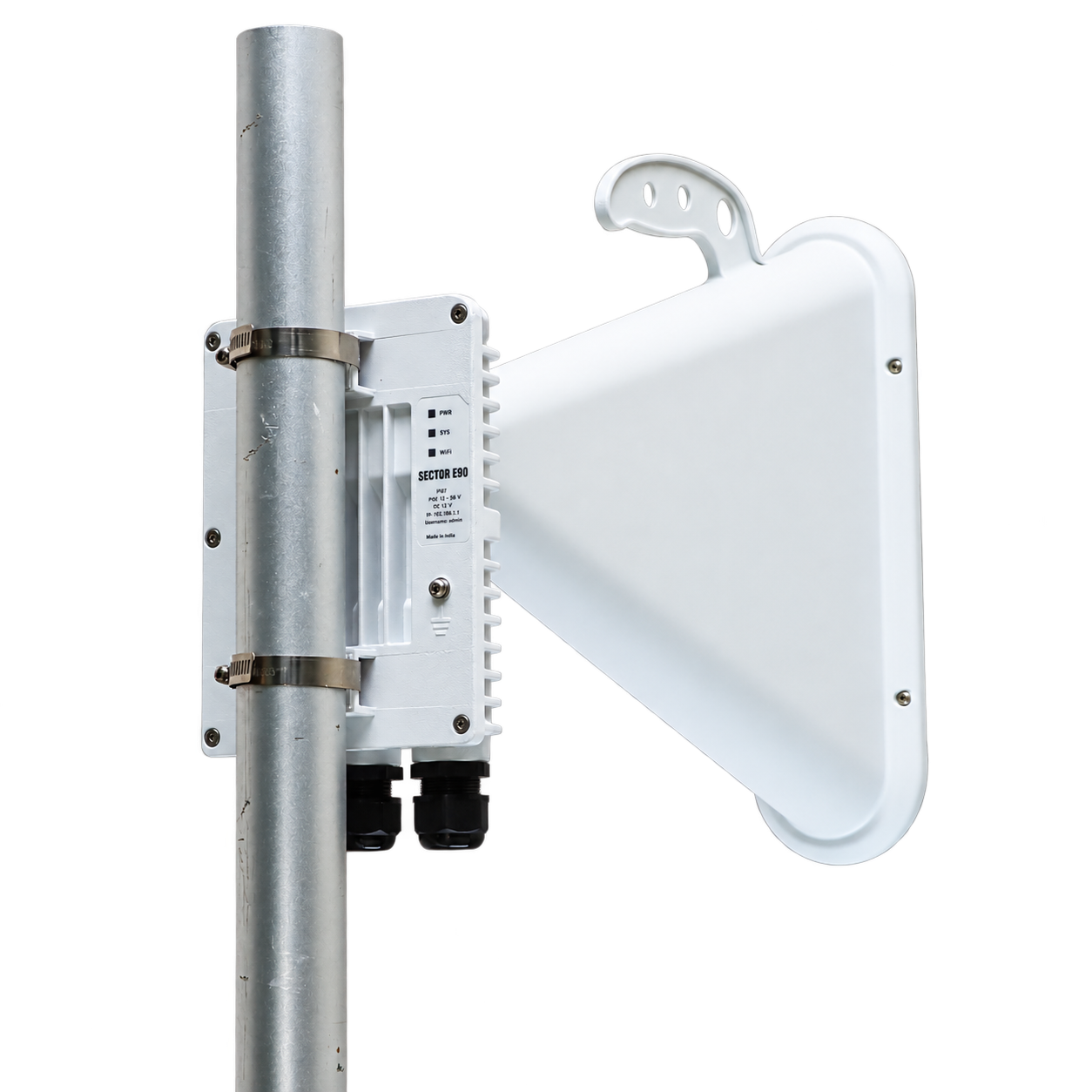

Pole mounting · Rear view
