Reach distant coastal stations.
Designed for extended ship-to-shore cellular connections, with the installation positioned for a clear path toward the coast.
Remote sites. Coastal waters. Connected operations.
LTE / 5G LINEUP
Compare outdoor cellular routers for remote sites and demanding maritime operations.
01 / OUTDOOR CELLULAR
Connect beyond fixed networks.
Compact deployment or high directional gain. Choose the right connection for your site.
Swipe to compare both products
| Specification |  5G TUBECompact access. Flexible deployment. |  5G GRIDDirectional gain. Greater reach. |
|---|---|---|
| Positioning | Compact outdoor cellular access | High-gain directional cellular access |
| Mobile networks | 5G Sub-6 GHz SA / NSA · 4G LTE | 5G Sub-6 GHz SA / NSA · 4G LTE |
| Antenna gain | Up to 10 dBi | Up to 22 dBi · directional grid |
| Spatial diversity | Up to 4×4 downlink MIMO 5G, band dependent | 4×4 MIMO |
| 5G NSA downlink¹ | Up to 2.6 Gbps | Up to 3.4 Gbps |
| 5G SA downlink¹ | Up to 2 Gbps | Up to 2.4 Gbps |
| LTE category | Cat 12 downlink / Cat 13 uplink | Cat 19 |
| Network interface | 1× Gigabit Ethernet | 1× 2.5 Gigabit Ethernet |
| SIM slots | 1 Micro SIM | 1 SIM |
| Power input | 802.3af/at PoE or 24–48 V passive PoE | 24–48 V passive PoE |
| Weather protection | IP65 | IP65 |
| Operating temperature | −20 to +50 °C | −20 to +50 °C |
| Storage temperature | −20 to +70 °C | −20 to +70 °C |
| Weight | 0.8 kg | 3.5 kg |
| Cellular configuration | APN · Band lock · PCI / cell lock | APN · Band lock · PCI / cell lock |
¹ Theoretical cellular downlink rates. Actual throughput depends on the operator network, signal conditions, supported bands and the Ethernet interface. Confirm the band configuration for the target operator.

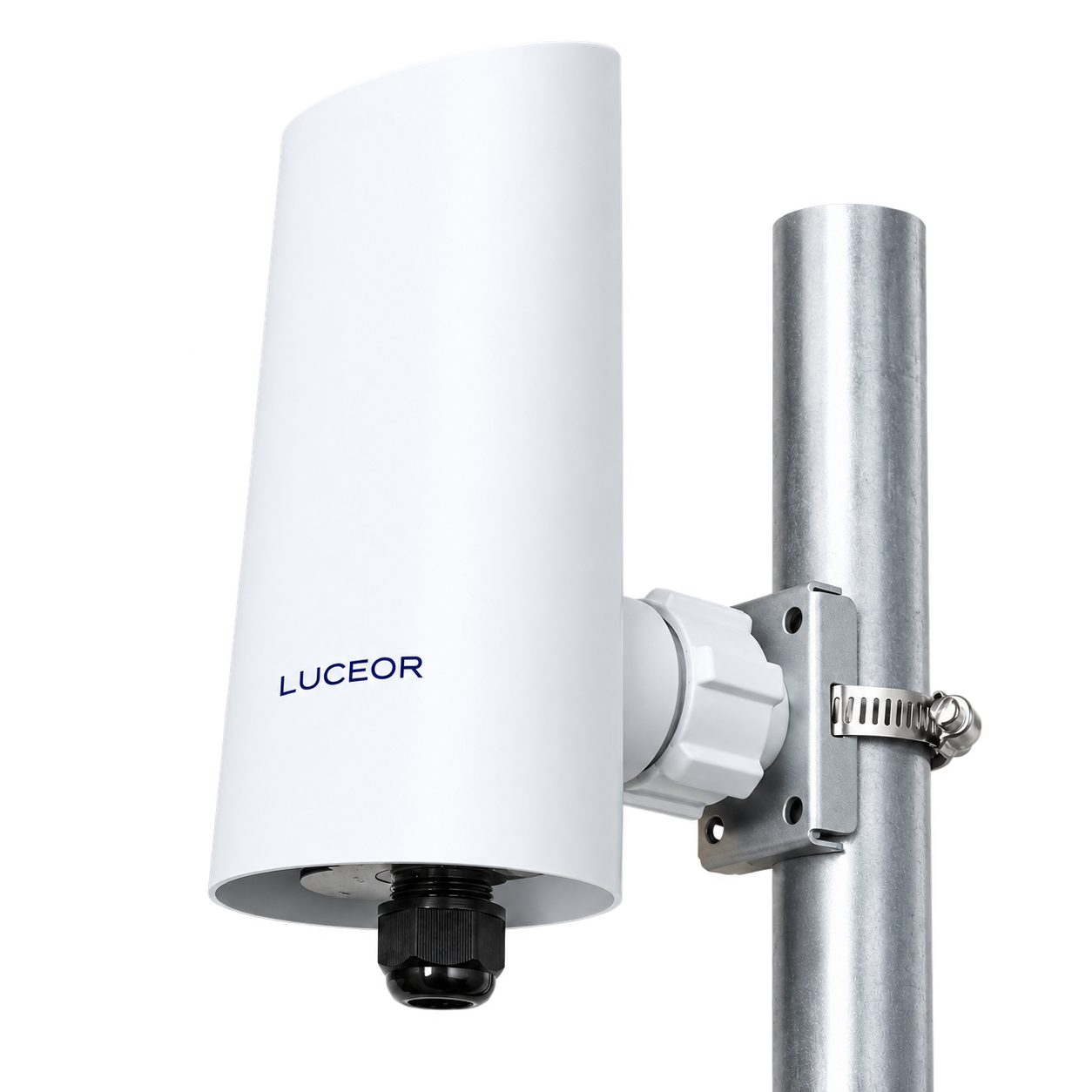

5G TUBE · Compact and adaptable.
A lightweight outdoor CPE with integrated antennas and flexible PoE input, for sites that need a straightforward cellular uplink.

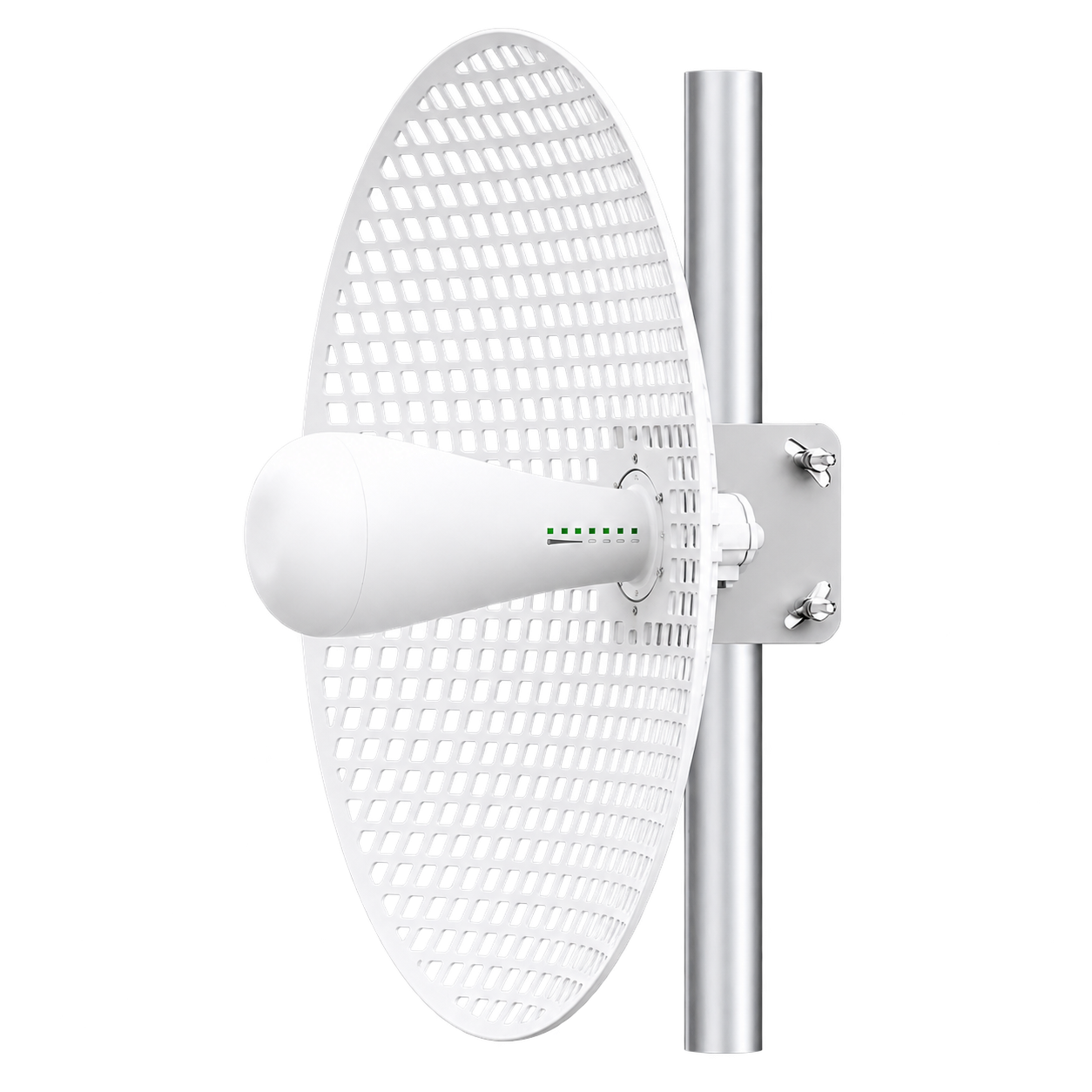

5G GRID · Focus on the serving station.
A directional grid with up to 22 dBi gain, designed to concentrate reception toward the selected cellular base station.
02 / MARINE CONNECTIVITY
Built for demanding waters.
Long-range coastal communication. Rugged construction. Two-operator SIM redundancy.
ADVANCED MARINE 5G / LTE ROUTER

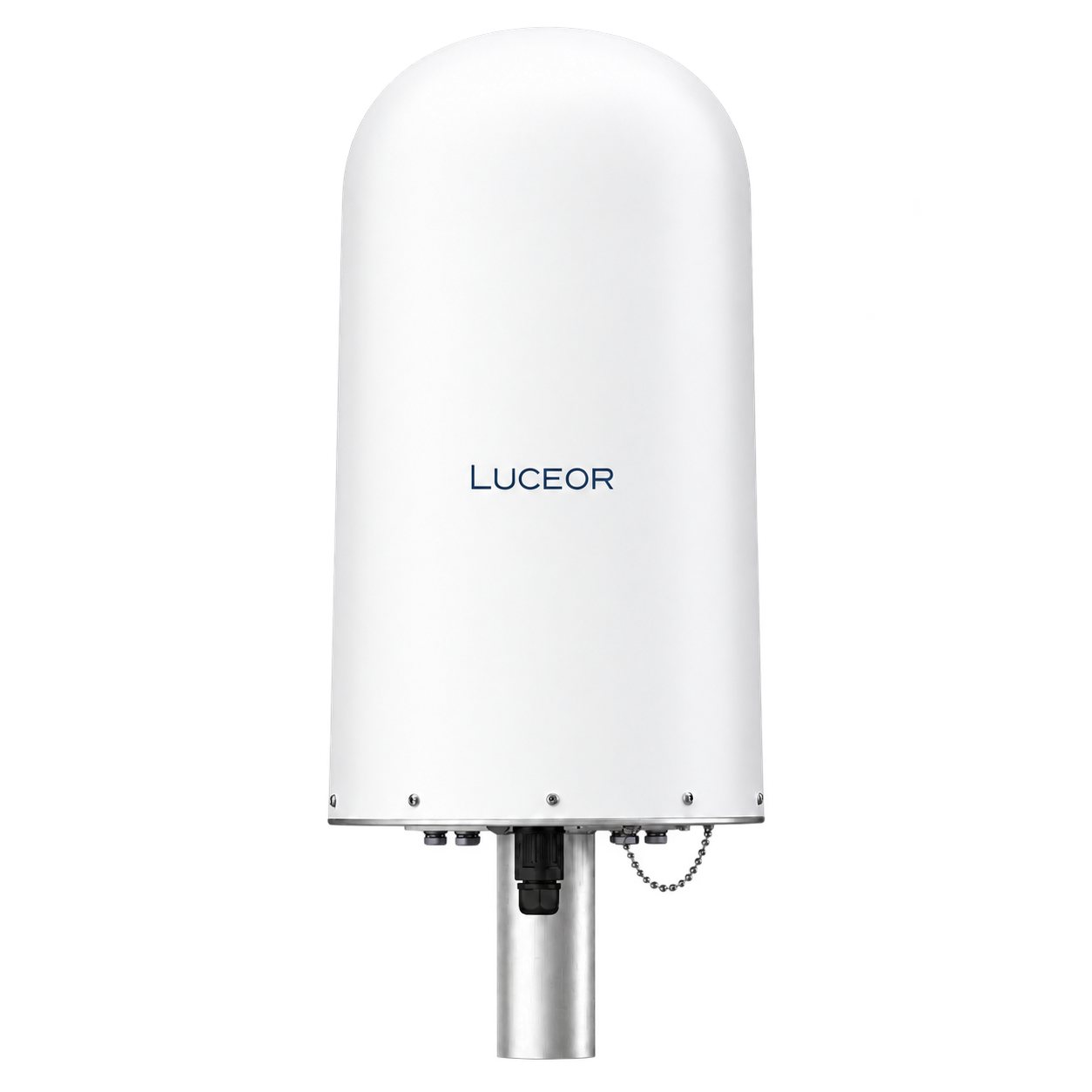

5G BOAT
Bring cellular connectivity aboard. Designed for demanding maritime environments, 5G BOAT combines an IP67 enclosure, coastal reach and two SIM slots for two mobile operators.
- Mobile networks
- 5G SA / NSA · LTE
- Operator redundancy
- 2 SIM slots · 2 operators
- Weather protection
- IP67
- Network interface
- 1× 2.5 Gigabit Ethernet
- 5G NSA downlink¹
- Up to 3.4 Gbps
- Power input
- 802.3af/at PoE

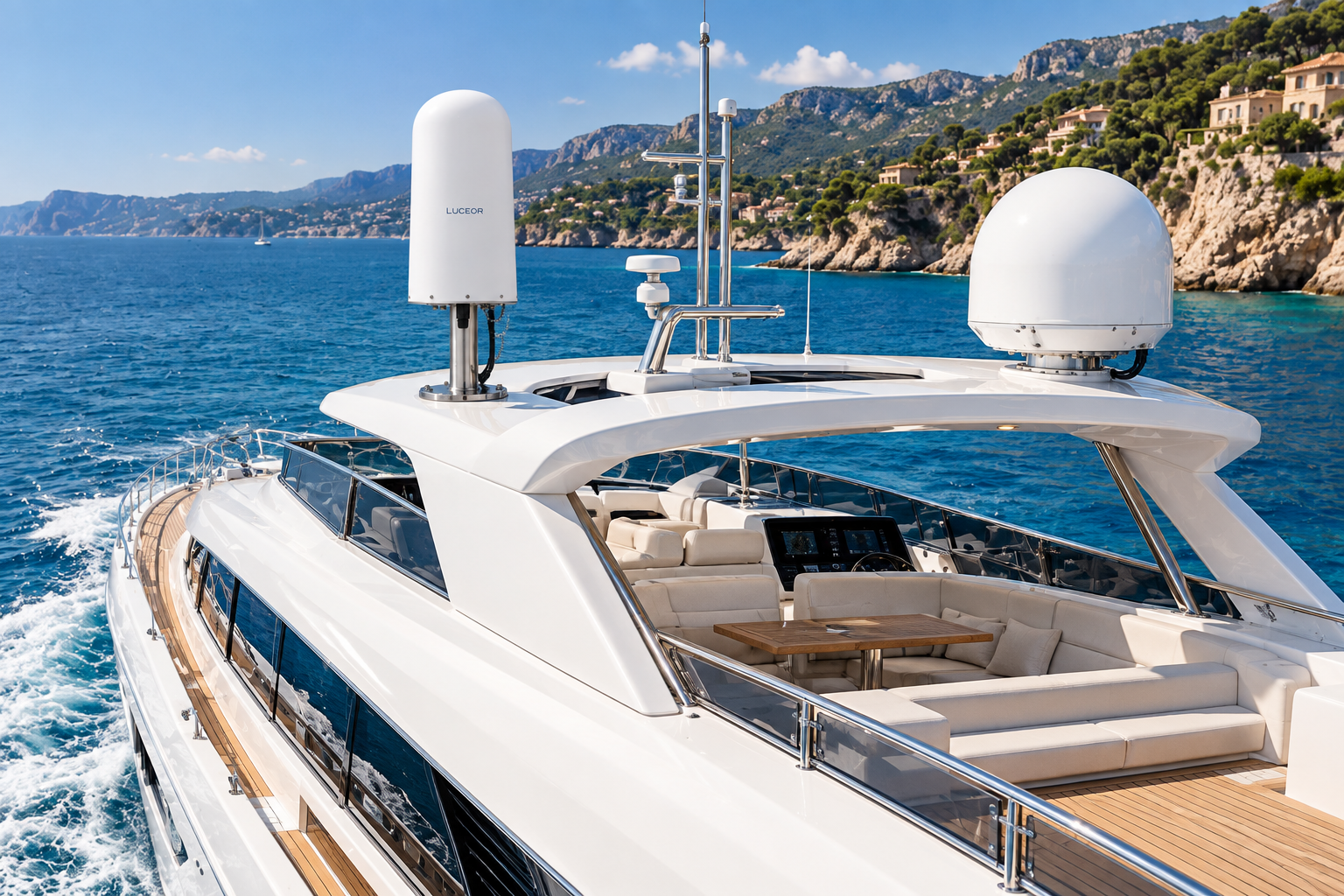

Ready for exposed installation.
An IP67 enclosure and pole mounting support deployment on vessels operating in demanding marine conditions.
Two operators. More options.
Two SIM slots enable a two-operator redundancy strategy, with an alternative network as coverage changes along the route.
¹ Theoretical cellular downlink rate. Maritime range depends on coastal network coverage, antenna height, line of sight and conditions. WiFi distribution on board requires an external WiFi access point.
FROM THE VESSEL TO THE SHOREKeep the coast
Keep the coast
within reach.
Connect on-board networks to coastal cellular infrastructure, with a dedicated marine router built for exposed deployments.
5G / LTEIP67DUAL SIM
Explore 5G BOATONE RANGE. DIFFERENT ENVIRONMENTS.The right uplink.
The right uplink.
Where you need it.
From a remote building to a vessel at sea, match the cellular router to the installation and the available network.
01 / COMPACT OUTDOOR SITES
5G TUBE
A compact, 0.8 kg CPE for outdoor cellular access, with Gigabit Ethernet for the local network.
02 / DIRECTIONAL SITE LINKS
5G GRID
High antenna gain for a focused connection toward a serving station, with a 2.5 GbE handoff.
03 / MARITIME OPERATIONS
5G BOAT
A rugged marine router for coastal connectivity, with two SIM slots for two operators.
Connect your next site.
Choose the router, operator coverage and installation for your environment.
