Accessories.
Complete your wireless installation.
From the antenna to the power source.
WIRELESS ACCESSORIES LINEUP
Choose the antenna pattern, frequency bands and power supply for your deployment.
Coverage all around.
Compare five omnidirectional antennas for WiFi, WiMesh and cellular deployments.

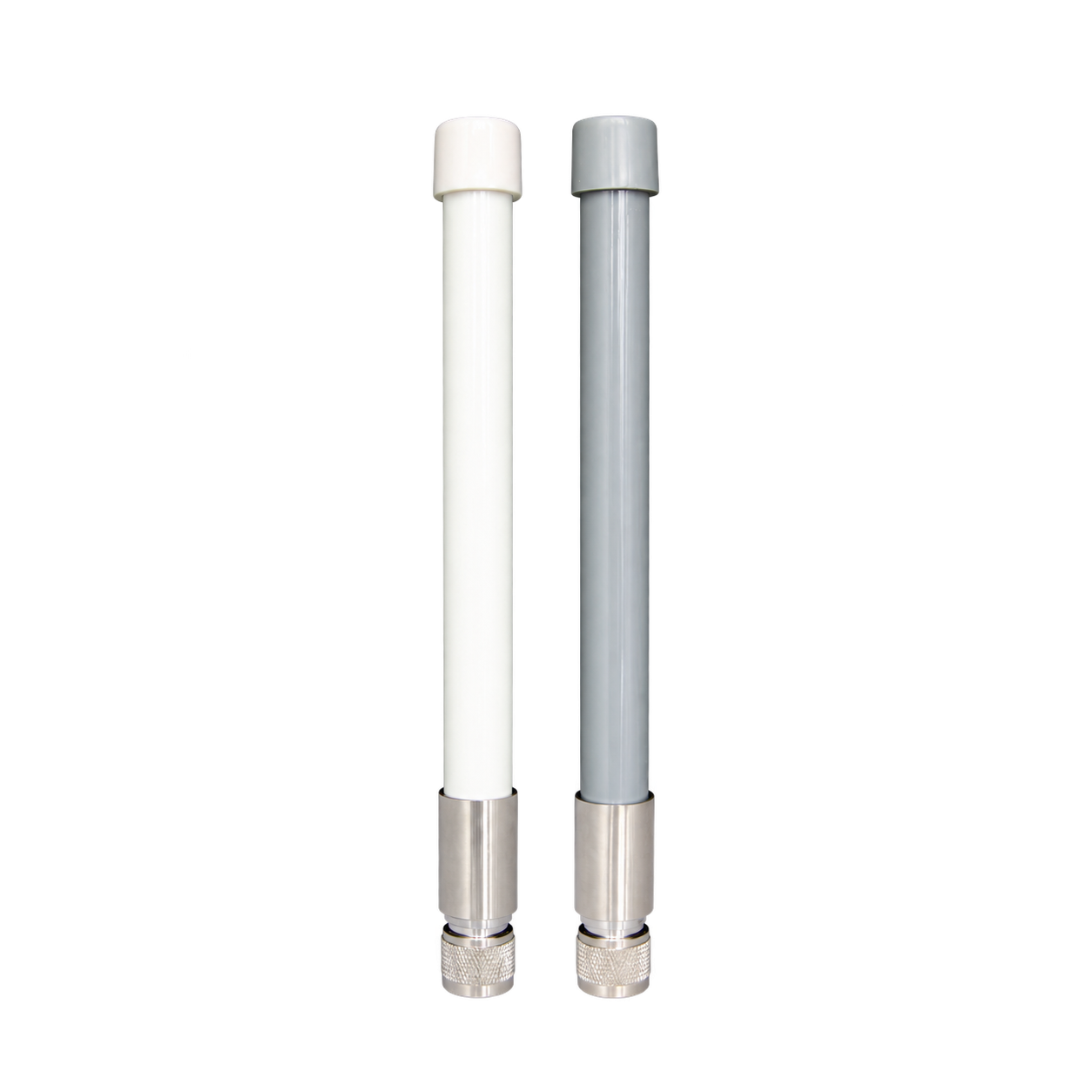

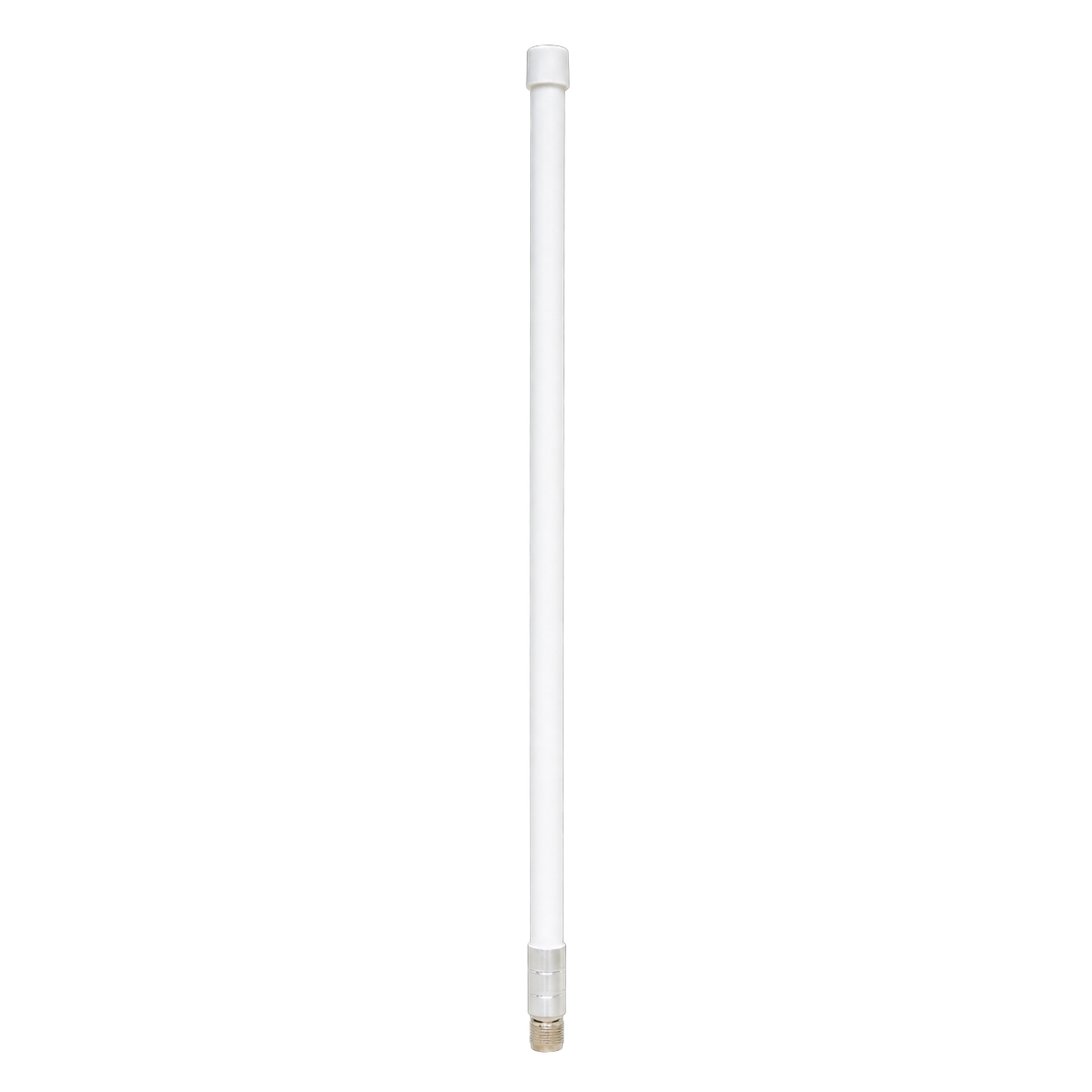

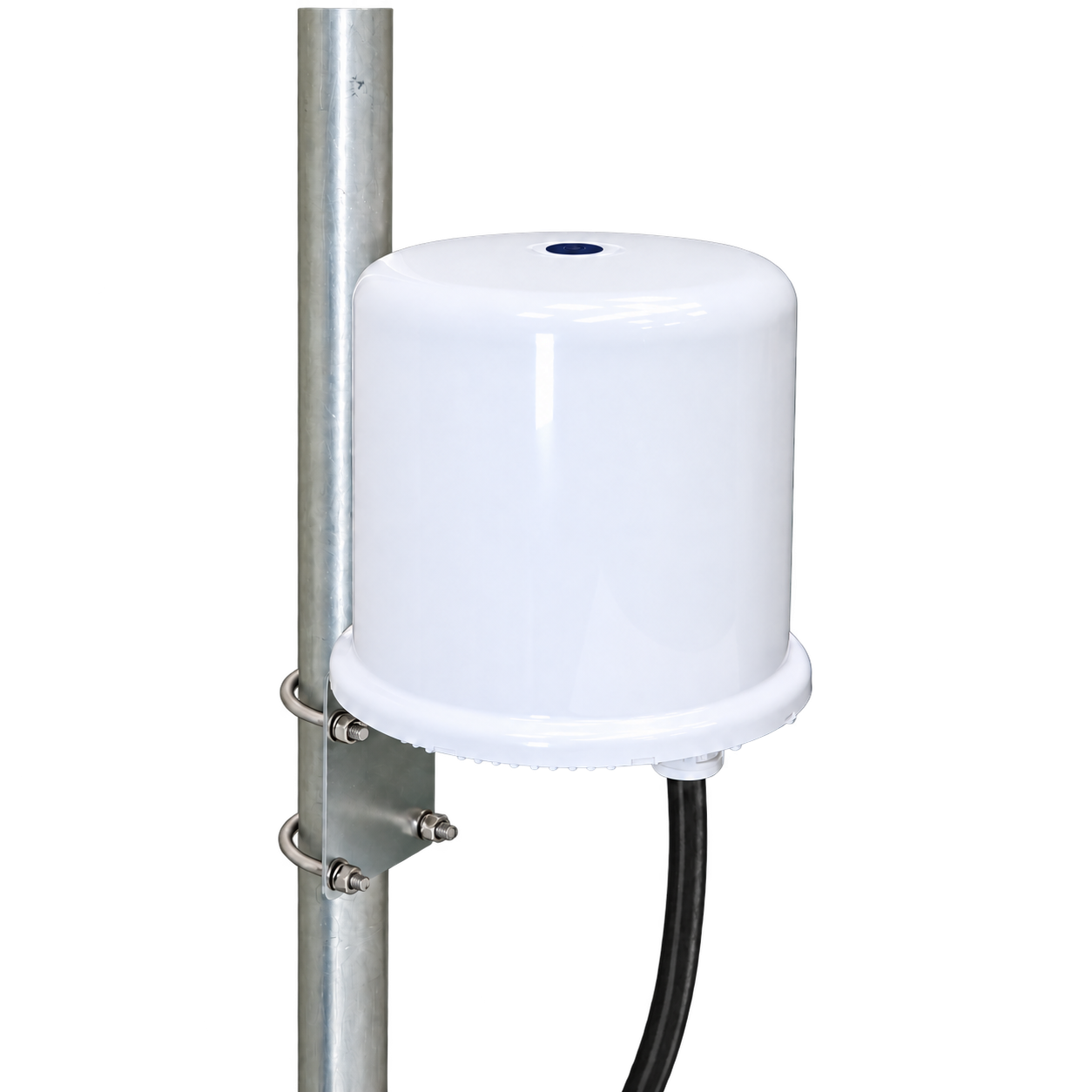

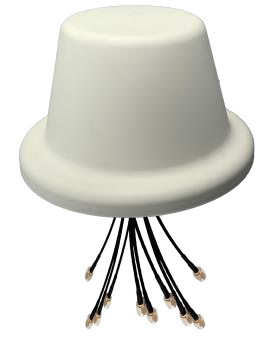

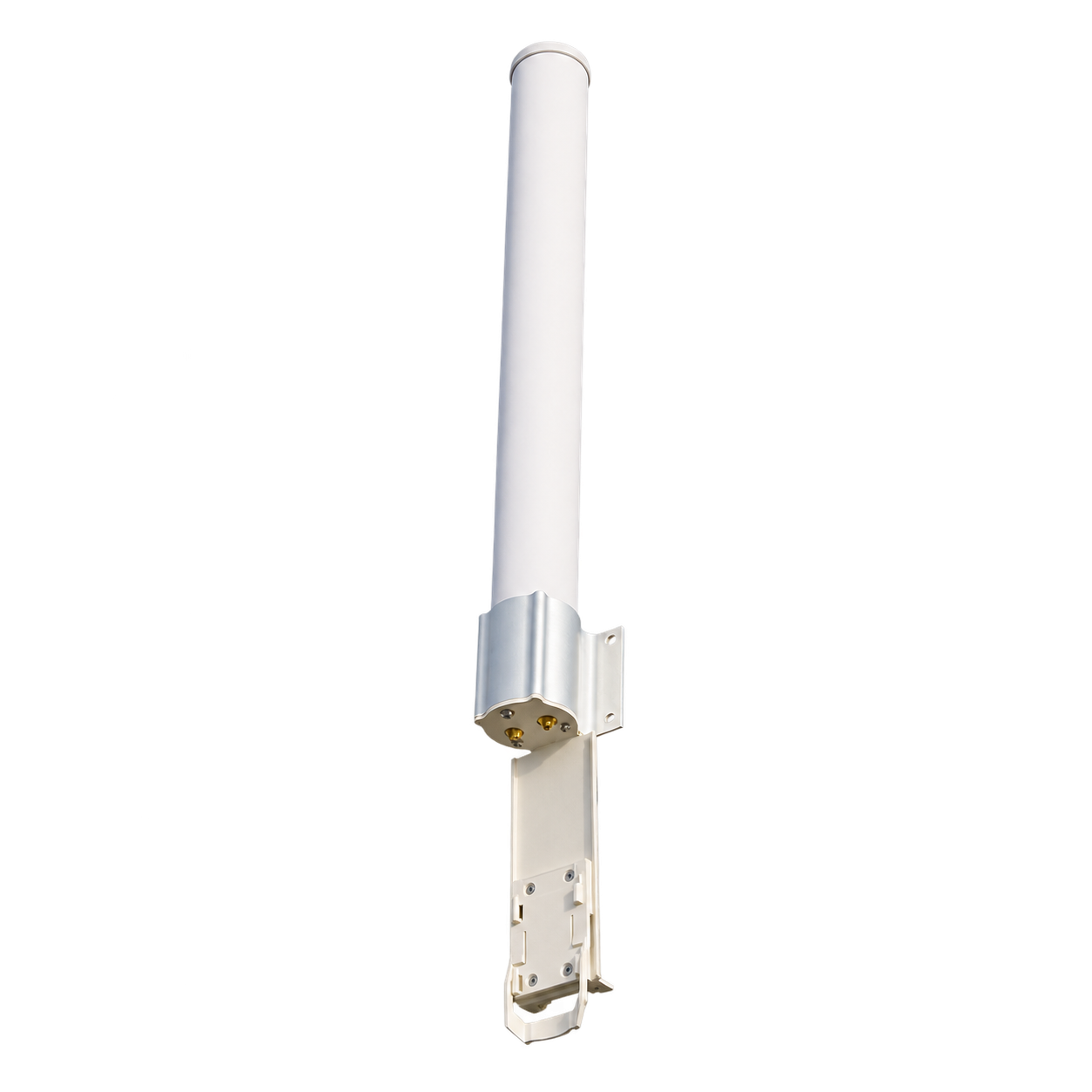

| Specification |  O2B-G8-1P-NCompact dual-band omni |  O2B-G10-1P-NHigh-gain dual-band omni |  O5G13-2P-RDual-polarized 5 GHz omni |  O3B-6P-RTri-band, six-port omni |  360WB-5G-10P-TNCCellular + WiFi, ten-port omni |
|---|---|---|---|---|---|
| Antenna type | Omnidirectional | Omnidirectional | Omnidirectional | Omnidirectional | Omnidirectional |
| Frequency range | 2.400–2.500 GHz 5.150–5.850 GHz | 2.400–2.485 GHz 5.150–5.850 GHz | 4.9–5.8 GHz | 2.400–2.485 GHz 5.150–5.850 GHz 5.900–7.125 GHz | Cellular: 617–960 MHz 1.710–6.000 GHz WiFi: 2.400–2.500 GHz 5.150–7.200 GHz |
| Gain · 2.4 GHz | 6 dBi | 7 dBi | — | 6 dBi | 4 dBi |
| Gain · 5 GHz | 8 dBi | 10 dBi | 13 dBi | 8 dBi | 6 dBi |
| Gain · 6 GHz | — | — | — | 8 dBi | 6 dBi |
| RF ports | 1 | 1 | 2 | 6 | 10 · 4 cellular + 6 WiFi |
| RF connectors | N male | N male | 2× RP-SMA or 2× N female | 6× RP-SMA or 6× RP-TNC | 10× TNC¹ |
| Horizontal beamwidth | 360° | 360° | 360° | 360° | 360° |
| Vertical beamwidth | 40° | 15° | 7° | 55° at 2.4 GHz 30° at 5 / 6 GHz | Not specified |
| Polarization | Vertical | Vertical | Dual slant · V / H | Linear · Vertical | 4 + 6 linear |
| Dimensions | Ø20 × 300 mm | Ø20 × 550 mm | Ø70 × 800 mm | Ø180 × 200 mm | Ø201 × 120 mm |
| Weight | 360 g | 0.8 kg | 3 kg | 1.5 kg | 1.5 kg |
Gain is specified within each antenna’s supported frequency range. — Band not supported. Cellular gain for 360WB-5G-10P-TNC: 3 / 5 dBi; weather protection: IP65. ¹ TNC configuration to confirm; reference photo shows the SMA-connector version.
Each model offers 360° horizontal coverage. Select the gain and vertical beamwidth that match your installation.
Check the radio’s bands, RF port count and connector type when selecting antennas and cables.
Focus your coverage.
Wideband sector coverage with four RF ports for directional deployments.

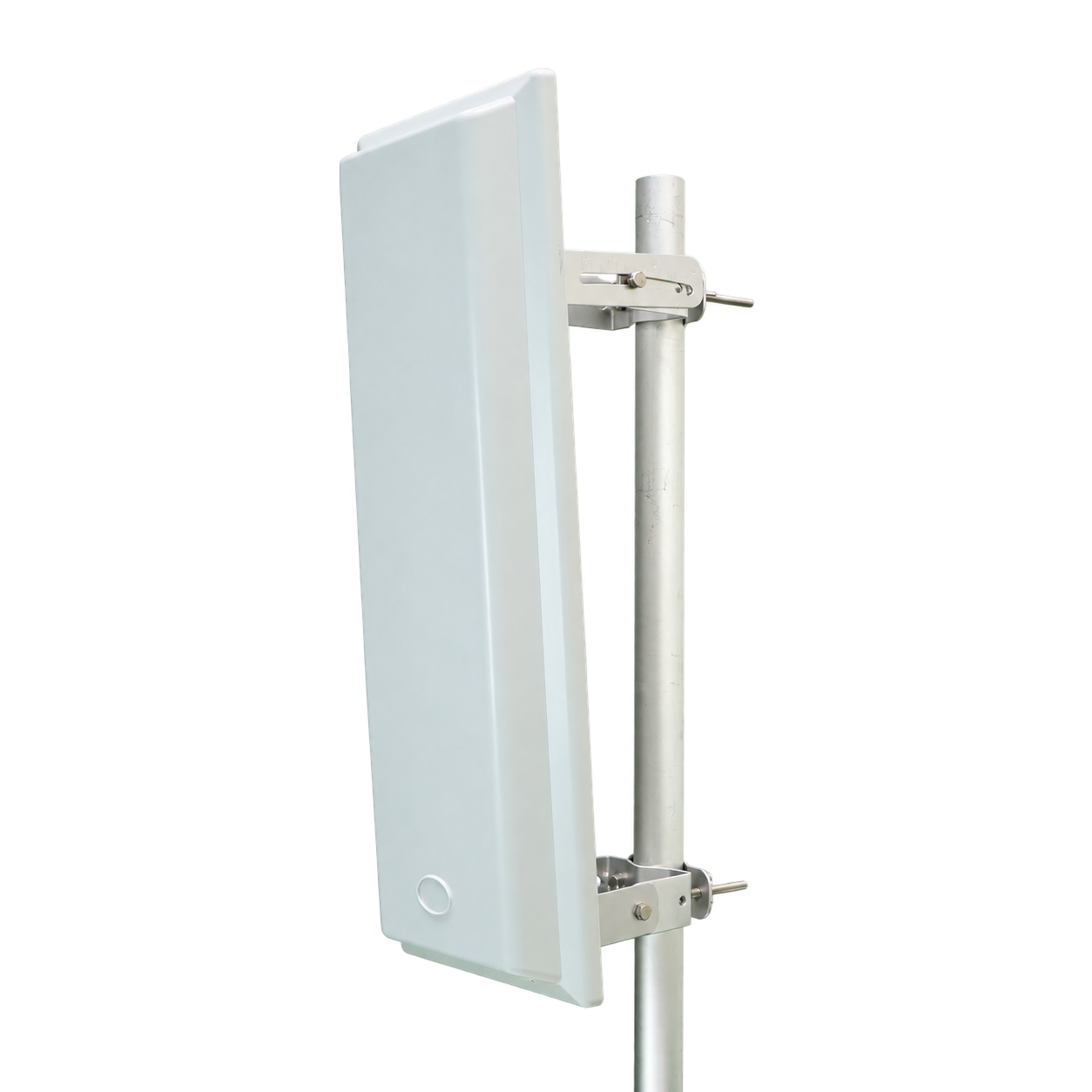

S90WB-4P-N
Concentrate coverage within a 90° horizontal sector, with 19 dBi gain across the 5.15–7.125 GHz frequency range.
- Frequency range
- 5.15–7.125 GHz
- Antenna gain
- 19 dBi
- RF ports
- 4
- Horizontal beamwidth (−6 dB)
- 90°
Electrical specifications
| Antenna type | Sector |
|---|---|
| Frequency range | 5.15–7.125 GHz |
| Antenna gain | 19 dBi |
| Spatial diversity | 4×4 MIMO |
| RF ports | 4 |
| Polarization | Double dual slant · 2V + 2H |
| Horizontal beamwidth (−6 dB) | 90° |
| Vertical beamwidth (−6 dB) | 4° |
| Front-to-back ratio | >25 dB |
| Port isolation | >30 dB |
| VSWR | Typical <1.5 · Maximum 2.0 |
| Maximum power per port | 50 W |
| Impedance | 50 Ω |
| Lightning protection | DC ground |
Mechanical & environmental
| Dimensions (L × W × D) | 700 × 250 × 60 mm |
|---|---|
| Weight | 4.5 kg |
| Color | Gray |
| Packaging dimensions (1 unit) | 83.5 × 26 × 8.5 cm |
| Mounting | Pole · Ø30–80 mm |
| Mechanical tilt | +3° to −10° |
| Reflector material | Aluminum |
| RF connectors | 4× N female |
| Operating temperature | −50 to +70 °C |
| Operating humidity | ≤95% |
| Wind speed · operation | <145 km/h |
| Wind speed · survival | <209 km/h |
Designed for MIMO and 802.11ax deployments, long-distance backhaul and point-to-multipoint data links. Match the antenna’s frequency range, connector type and four RF ports to your radio configuration.
Power your deployment.
DC input and passive PoE output in a compact, DIN rail compatible module.

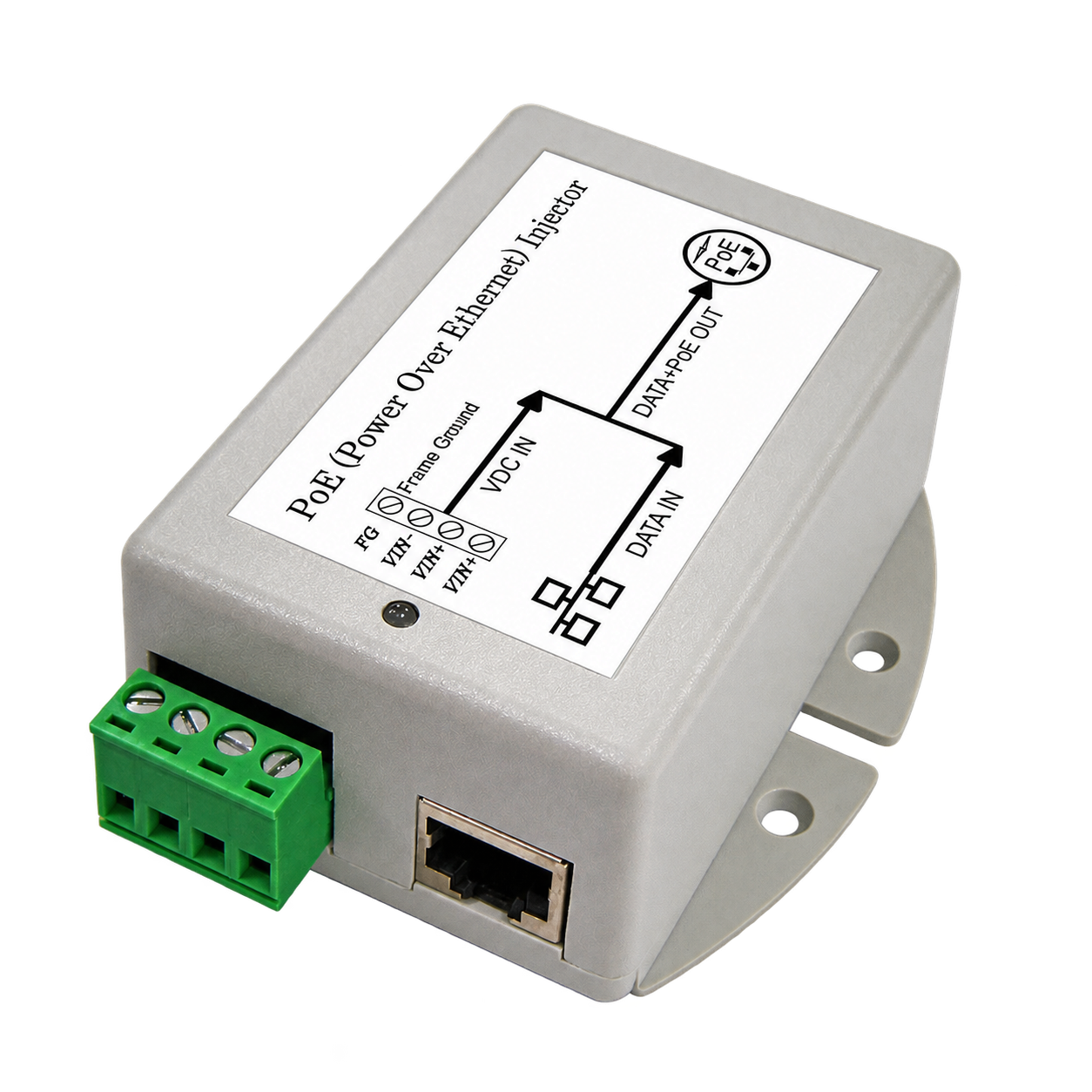

POE-DC-I1036-O48
Convert a 10–36 V DC supply into 48 V passive PoE, combining data and power on the output Ethernet connection.
- DC input
- 10–36 V DC
- PoE output
- 48 V DC · 0.42 A
- Output power
- 20 W max.
- Ethernet
- 100 Mbps
- PoE type
- Passive · non-802.3af
- Mounting
- DIN rail compatible
| Network ports | RJ45 data input · RJ45 data + power output |
|---|---|
| Protection | Short circuit auto-reset · Input fuse · Overcurrent protection |
| Conversion | Non-isolated · ≥72% efficiency at full load |
| Operating temperature | −25 to +45 °C |
| Dimensions | 85 × 78 × 36 mm |
For compatible 48 V passive PoE devices. Confirm the device’s voltage, pinout and power requirements before connection. Package contents available on request.
Every connection counts.
Find the antennas and power options that match your radio configuration.
